MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

Worldwide Marine Transmission System for Sale

Inquiry

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Suitable for twin engines with the same reduction ratio as forward and reverse.

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical, pneumatic or electrical remote control

Specification

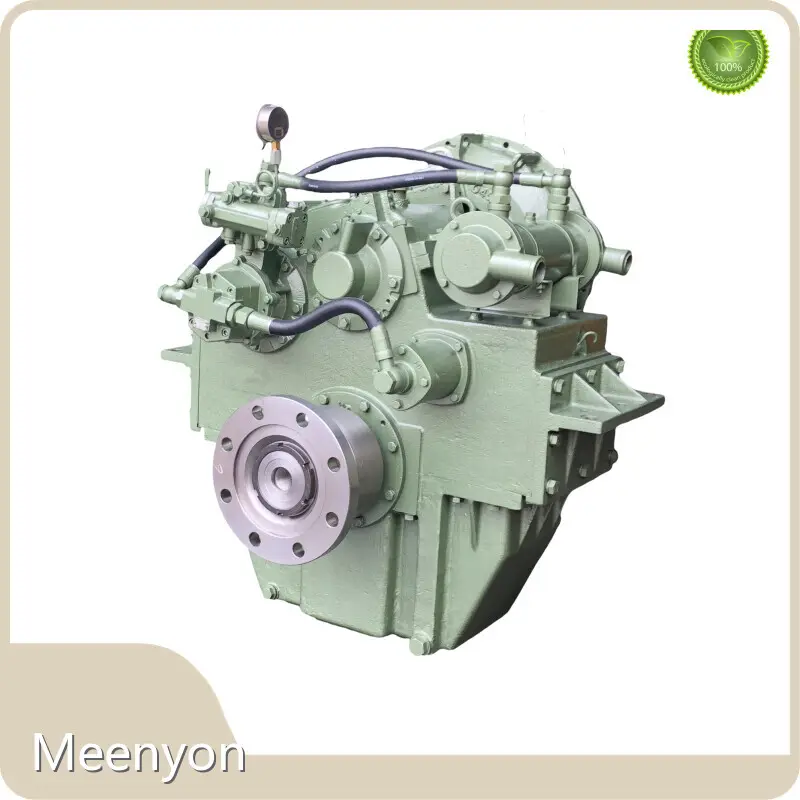

Item	Description	Model D400A
01	Engine·speed:1000-1800 rpm;max 799 hp at-1800 rpm.
02	Reduction Ratio :1	3.96	4.33	4.43	4.70	5.00	5.53	5.71	5.89
03	Rate (hp/rpm)	0.444	0.444	0.444	0.444	0.444	0.392	0.364	0.364
04	Bell housing: SAE #00,#0, #1				Flywheel: 14”, 16”, 18”
05	Overall L×W×H: 641×1010×988 mm				Dry weight: 1100 kg
06	Centre distance: 355 mm
07	Recommend engine: KT38-M800, TBD604BL6…
08	Rated propeller thrust: 82 kN

Dimension

Model D400A
C	355 mm
S	355 mm
F	644 mm
L	380 mm
R	380 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

· Meenyon marine transmission system is precisely manufactured by using top-grade raw materials and advanced machines.

· Under the strict supervision of our professionals, its quality is guaranteed.

· Meenyon chooses heavy and solid cartons to pack marine transmission system.

Company Features

· Based on the field of marine transmission system, Meenyon have accumulated rich experiences.

· First-class equipment, production technology and business management guarantee the first-class quality of Meenyon.

· We pursue an earth-friendly production model. We will execute strict production plans that significantly reduce negative production impact on the earth.

Application of the Product

The marine transmission system developed by Meenyon is widely used in industry.

Meenyon insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
