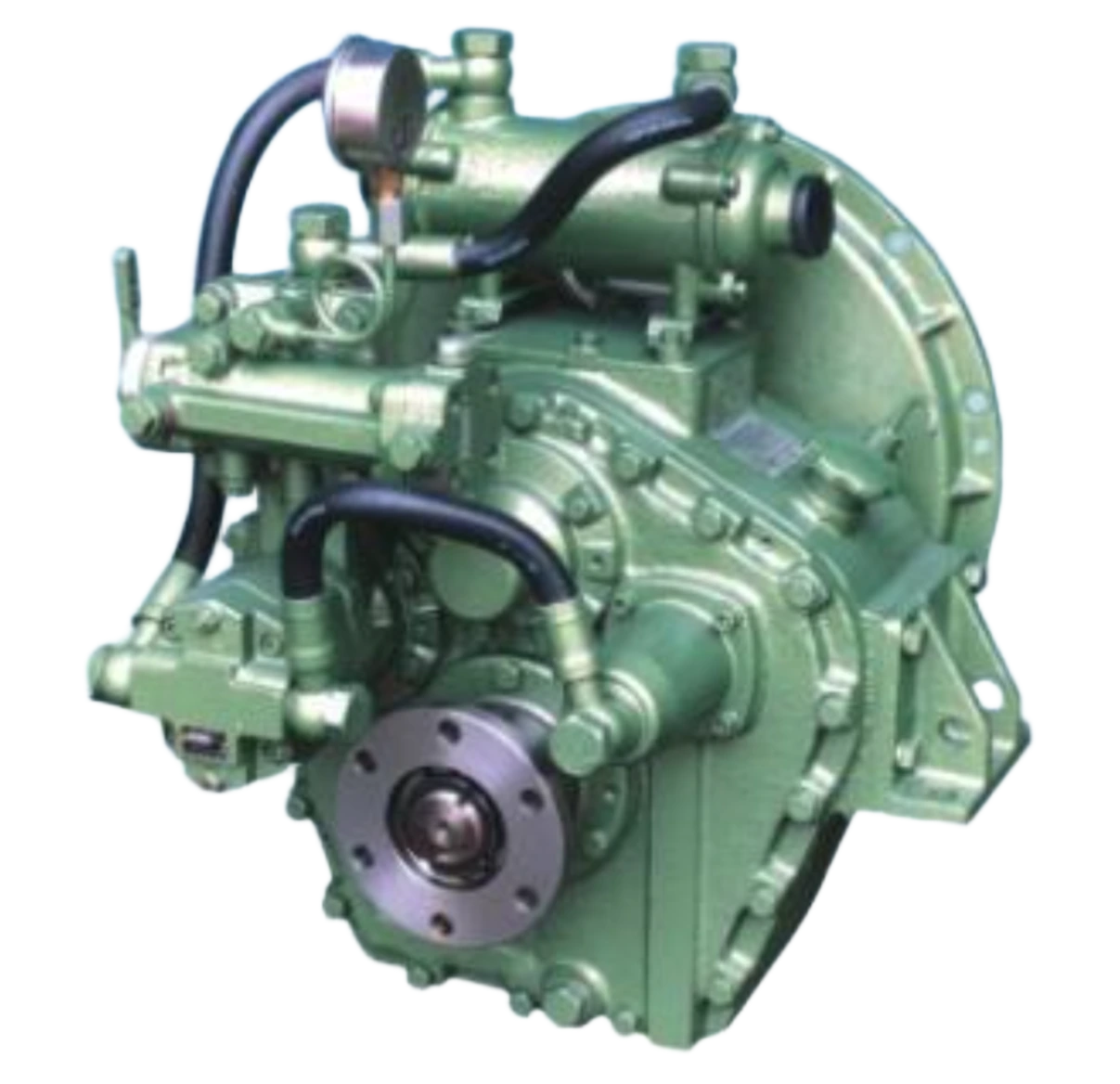

MEDIUM AND HEAVY DUTY MARINE GEARBOX MODEL MB270A
Apply to:
small and medium-sized fishing boats, transport ships, tugs, traffic boats, passenger ships and other ships.
Standard equipment :
● Mechanical control valve
● Oil cooler
● Companion flange / Reamer bolts
● Bell housing (selection)
● Flexible flywheel coupling (selection)
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical, pneumatic or electrical remote control
Spesifikaasje
Ûnderdiel | Beskriuwing | Model MB270A |
| ||||||
01 | Engine speed: 1000-2500 rpm; max 493.0 hp at 2500 rpm |
| |||||||
02 | Ratio :1 | 3.00 | 4.05 | 4.53 | 5.12 | 5.50 | 5.95 | 6.39 | 6.82 |
03 | Rate (hp/rpm) | 0.197 | 0.197 | 0.197 | 0.197 | 0.180 | 0.148 | 0.118 | 0.118 |
04 | Bell housing: #0,#1, #2 | Flywheel: 11.5”, 14”, 16”, 18” |
| ||||||
05 | Overall L×W×H: 594×810×868 mm | Dry weight: 675kg |
| ||||||
06 | Centre distance: 270 mm; |
| |||||||
07 | Recommend engine:NT-855-M400, CAT3406TA |
| |||||||
08 | Rated propeller thrust: 39.2 kN |
| |||||||
Diminsje
Model MB270A | |
C | 270 mm |
S | 320 mm |
F | 574 mm |
L | 335 mm |
R | 335 mm |
