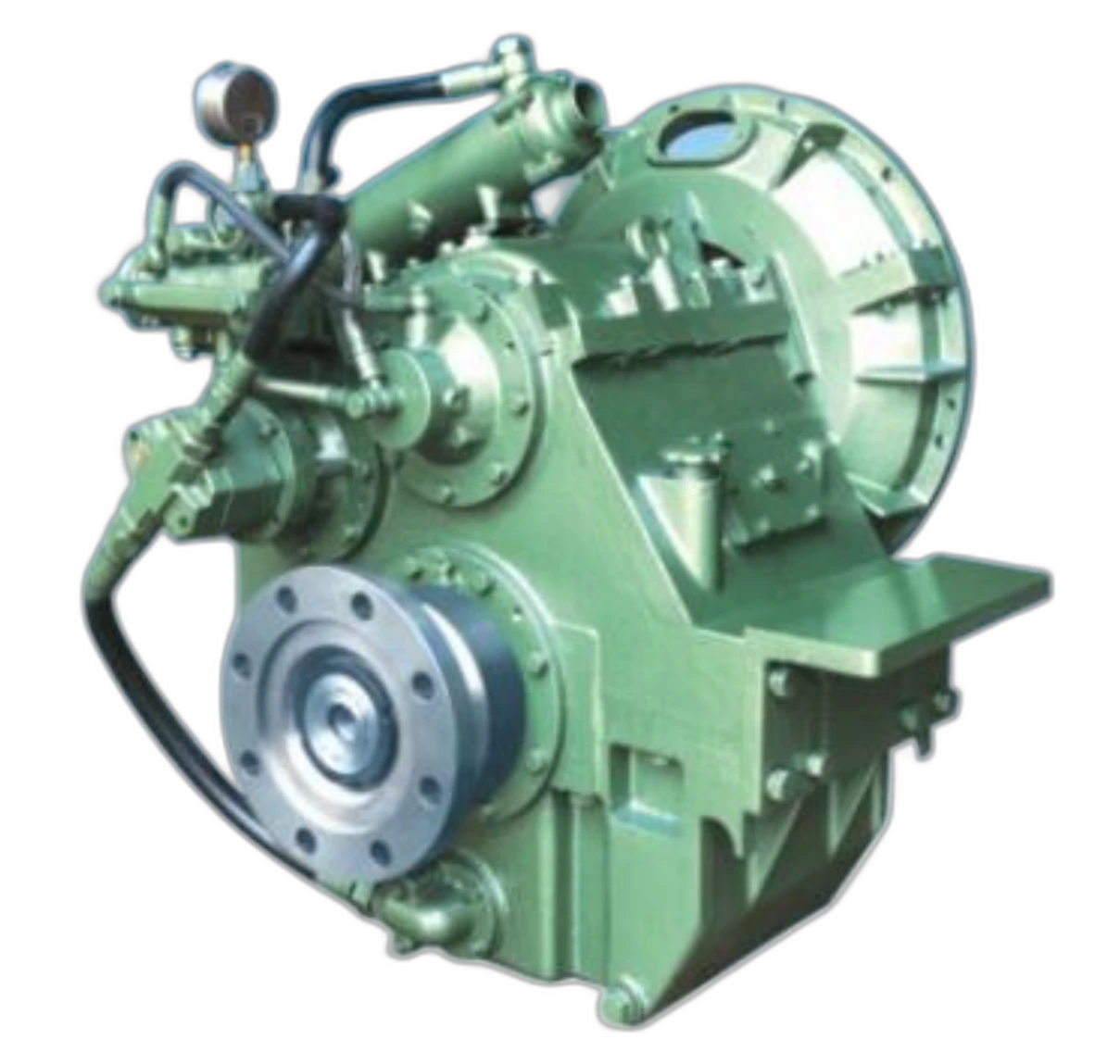

MEDIUM AND HEAVY DUTY MARINE GEARBOX MODEL M300
Apply to
Fishing boats, transport ships, passenger ships, tugs and all kinds of engineering ships.
Standard equipment
● Mechanical control valve
● Oil cooler
● Companion flange / Reamer bolts
● Bell housing (selection)
● Flexible flywheel coupling (selection)
ตัวเลือก
● Mechanical or electrical remote control
Caractéristiques
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Spécification
Article | Description |
| Model M 300 | ||||||||||
01 | Engine speed: 750-2500 rpm; max 862.0 hp at 2500 rpm | ||||||||||||
02 | Ratio :1 | 1.50 | 1.87 | 2.04 | 2.23 | 2.54 | 3.00 | 3.53 | 4.10 | 4.47 | 4.61 | 4.94 | 5.44 |
03 | Rate (hp/rpm) | 0.345 | 0.345 | 0.345 | 0.345 | 0.345 | 0.345 | 0.345 | 0.268 | 0.268 | 0.247 | 0.197 | 0.174 |
04 | Bell housing: #0, #1 | Flywheel: SAE 18”,16”,14” | |||||||||||
05 | Overall L×W×H:680×930×880 mm | Dry weight: 680kg | |||||||||||
06 | Centre distance: 264mm ; | ||||||||||||
07 | Recommend engine:KTA19-M600, TBD234V12… | ||||||||||||
08 | Rated propeller thrust: 50kN | ||||||||||||
Dimension
Model M300 | |
C | 264mm |
S | 270mm |
F | 648mm |
L | 435mm |
R | 435mm |
