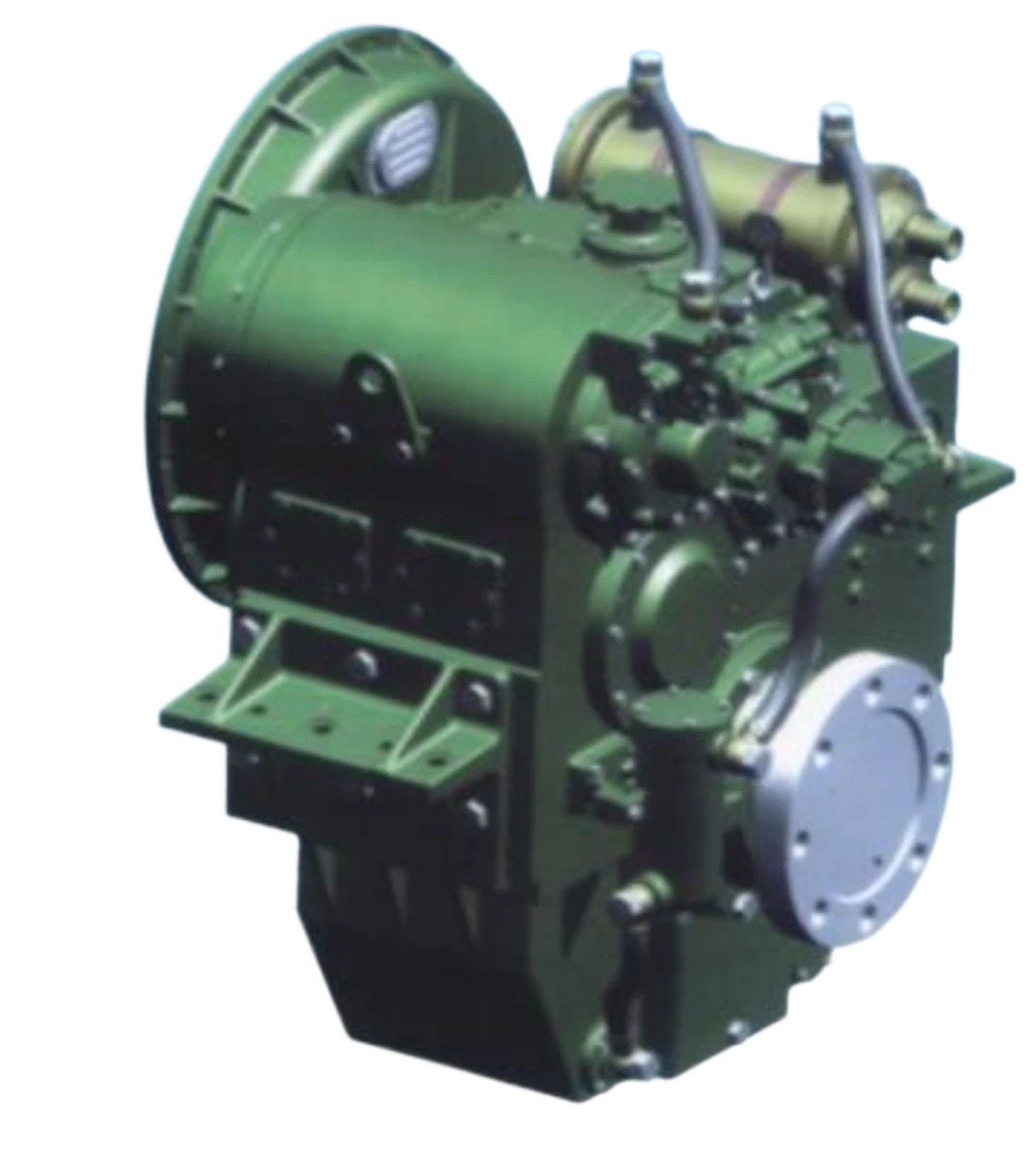

MEDIUM AND HEAVY DUTY MARINE GEARBOX MODEL T600A
Apply to:
Fishing boats, transport ships, passenger ships, tugs and all kinds of engineering ships.
Standard equipment:
● Mechanical control valve
● Oil cooler
● Companion flange / Reamer bolts
● Flexible flywheel coupling (selection)
特徴
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
仕様
Item | 説明 |
| Model T600A | |||||||
01 | Engine speed: 1000-2100 rpm; max 1267 hp at 2100 rpm | |||||||||
02 | Reduction Ratio :1 | 6.97 | 7.51 | 8.04 | 8.66 | 9.35 | ||||
03 | Rate (hp/rpm) | 0.523 | 0.487 | 0.453 | 0.390 | |||||
04 | Bell housing: #00,#0, #1 | Flywheel: 14”, 16”,18”,21” | ||||||||
05 | Overall L×W×H: 821×1214×1271 mm | Dry weight: 1650 kg | ||||||||
06 | Centre distance: 415 mm | |||||||||
07 | Recommend engine: KTA38-M940, CAT3508TA TBD234V16… | |||||||||
08 | Rated propeller thrust: 90 KN | |||||||||
Dimension
Model T600A | |
C | 415 んん |
S | 365 んん |
F | 821 んん |
L | 442 んん |
R | 442 んん |
