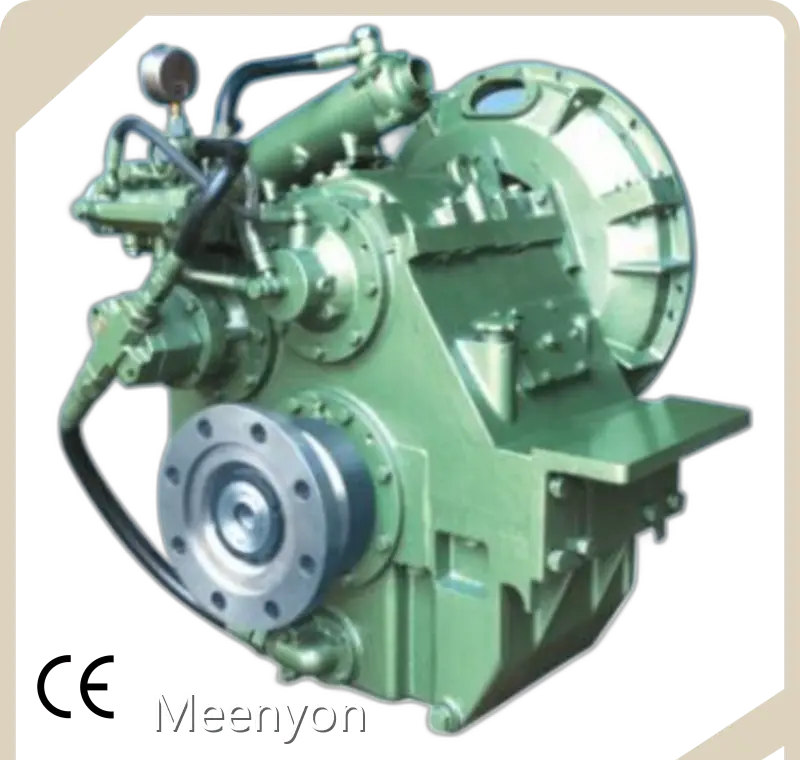

Top Heavy Duty Reduction Gearbox Heavy Duty Reduction Gearbox Company

Inquiry

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model 300
01	Engine speed: 750-2500 rpm; max 862.0 hp at 2500 rpm
02	Ratio :1	1.87	2.04	2.54	3.00	3.35	3.53	4.10	4.47	4.61	4.94	5.44
03	Rate (hp/rpm)	0.345	0.345	0.345	0.326	0.296	0.296	0.296	0.296	0.247	0.197	0.168
04	Bell housing: #0, #1				Flywheel: SAE 18”,16”,14”
05	Overall L×W×H:786×930×864mm				Dry weight: 740kg
06	Centre distance: 264mm ;
07	Recommend engine:KTA19-M600, TBD234V12…
08	Rated propeller thrust: 50kN

Dimension

Model 300
C	264mm
S	270mm
F	648mm
L	435mm
R	435mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

· Meenyon heavy duty reduction gearbox is designed by the concerted effort of strong R&D team and design team.

· The product has extremely stable performance, which can be used for a long time without damage.

· Meenyon is a development and production of heavy duty reduction gearbox company with strong strength.

Company Features

· Meenyon has built up a high reputation in the market. We are a professional manufacturer who is engaged in heavy duty reduction gearbox development and production.

· Meenyon is equipped with a batch of the most advanced production machines.

· We are working toward the goal of zero discharge of hazardous chemicals. We reduce the amount of water, chemicals, and energy used during production and processing.

Application of the Product

The heavy duty reduction gearbox developed by Meenyon is widely used in various fields.

While providing quality products, Meenyon is dedicated to providing personalized solutions for customers according to their needs and actual situations.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
