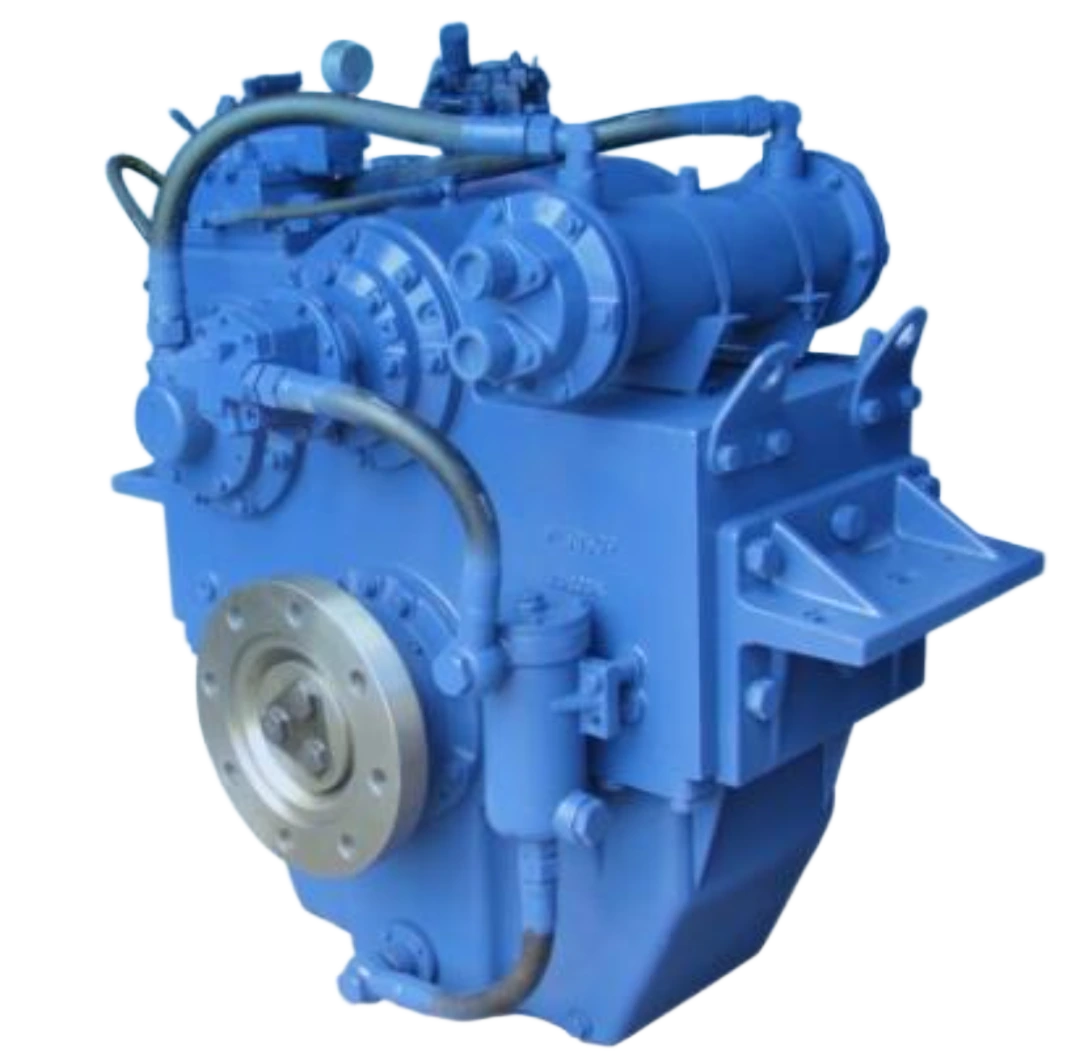

MEDIUM AND HEAVY DUTY MARINE GEARBOX MODEL D600A

Apply to

Fishing boats, transport ships, passenger ships, tugs and all kinds of engineering ships.

Standard equipment

● Mechanical control valve

● Oil cooler

● Companion flange / Reamer bolts

● Bell housing (selection)

● Flexible flywheel coupling (selection)

Options

● Mechanical or electrical remote control

Inquiry

Write a Review

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model D600A
01	Engine speed: 1000-2100 rpm; max 1380 hp at 2100 rpm
02	Ratio :1	4.18	4.43	4.70	5.00	5.44	5.71
03	Rate (hp/rpm)	0.657	0.657	0.657	0.657	0.603	0.577
04	Bell housing: #00, #0, #1				Flywheel: 21”, 18”, 16”, 14”
05	Overall L×W×H: 745×1214×1271 mm				Dry weight: 1550kg
06	Centre distance: 415mm
07	Recommend engine:KTA38-M1045, CAT3508B, TBD604BV8…
08	Rated propeller thrust: 90kN

Dimension

Model D600A
C	415mm
S	415mm
F	781mm
L	442mm
R	442mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
