Company Advantages

· Meenyon ship gearbox meets rigorous standards for quality and consistency.

· The product quality is superior, the performance is stable, the service life is long.

· The product sells well around the world and wins favorable comments in the industry.

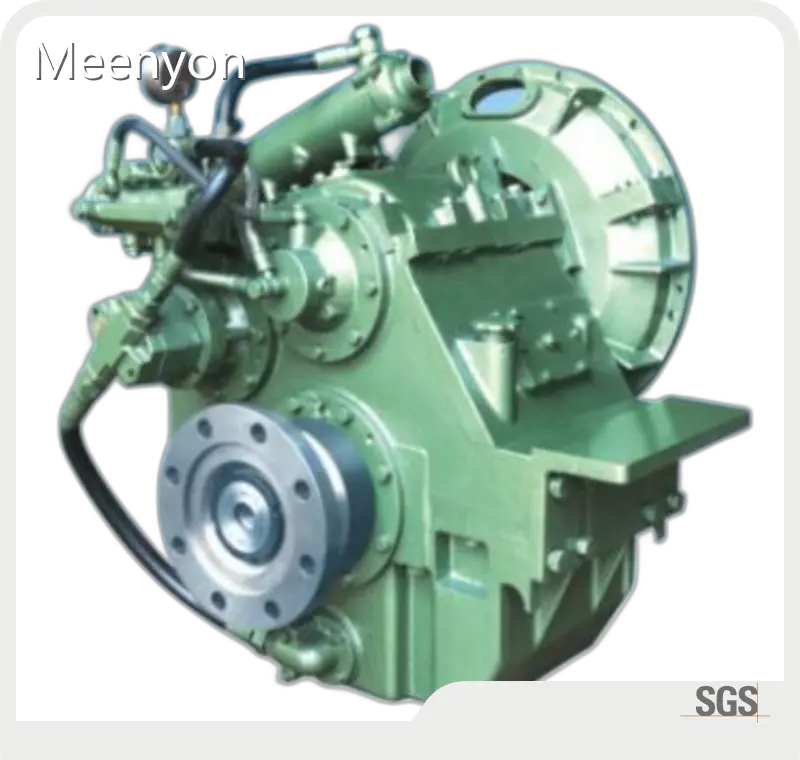

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description		Model M300
01	Engine speed: 750-2500 rpm; max 862.0 hp at 2500 rpm
02	Ratio :1	1.50	1.87	2.04	2.23	2.54	3.00	3.53	4.10	4.47	4.61	4.94	5.44
03	Rate (hp/rpm)	0.345	0.345	0.345	0.345	0.345	0.345	0.345	0.268	0.268	0.247	0.197	0.174
04	Bell housing: #0, #1						Flywheel: SAE 18”,16”,14”
05	Overall L×W×H:680×930×880 mm						Dry weight: 680kg
06	Centre distance: 264mm ;
07	Recommend engine:KTA19-M600, TBD234V12…
08	Rated propeller thrust: 50kN

Dimension

Model M300
C	264mm
S	270mm
F	648mm
L	435mm
R	435mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Features

· The widespread popularity of the Meenyon brand demonstrates its powerful features.

· Meenyon has already accumulated rich experiences both in ship gearbox sales and after-sales services. Strict quality control and focus on details give incomparable advantages to our ship gearbox. Meenyon have paid pay much attention to the high-quality services ,and we always try to supply the mostly suitable solution for our clients to meet their detailed demands.

· While Meenyon is striving to become the world's leading ship gearbox supplier, we are able to do our best. Please contact us!

Product Comparison

Compared with products in the same category, ship gearbox's core competencies are mainly reflected in the following aspects.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
