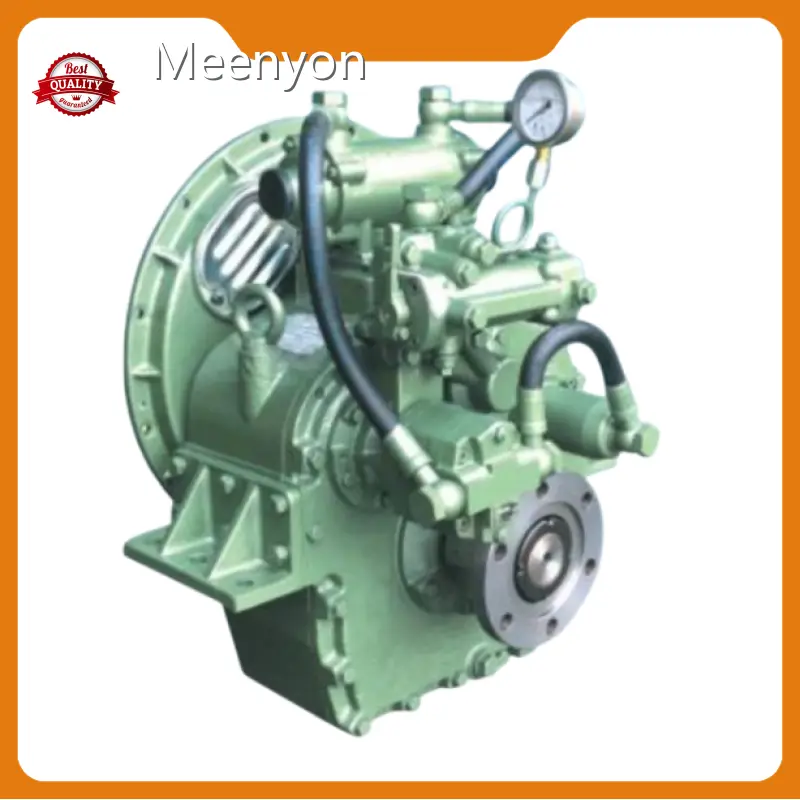

Meenyon Ship Gearbox Factory Direct Supply
Product details of the ship gearbox
Quick Detail
ship gearbox is fantastic with its unique shape. Our commitment to quality ensures that the product is always at the best quality. Meenyon pays high attention to outer packing to make sure that ship gearbox will be alright even for long-distance transportation.
Product Description
Our company starts from the whole and excels in detail in the production of ship gearbox. So our products have better performance in the following aspects.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T300 |
|
|||||||
|
01 |
Engine speed: 750-2300 rpm; max 750 hp at 2300 rpm |
|
|||||||||
|
02 |
Reduction Ratio :1 |
1.73 | 4.95 | 5.51 | 6.03 | 6.65 | 7.04 | 7.54 | 8.02 | 8.47 | |
|
03 |
Rate (hp/rpm) |
0.326 | 0.326 | 0.326 | 0.326 | 0.326 | 0.326 | 0.296 | 0.296 | 0.268 | |
|
04 |
Bell housing: #0, #1 |
Flywheel: 14”, 16”,18” |
|
||||||||
|
05 |
Overall L×W×H: 772×980×1106 mm |
Dry weight: 1120 kg |
|
||||||||
|
06 |
Centre distance: 355 mm |
|
|||||||||
|
07 |
Recommend engine: KTA19-M600; TBD234V12 … |
|
|||||||||
|
08 |
Rated propeller thrust: 70 KN |
|
|||||||||
Dimension
|
Model T300 |
|
|
C |
355 mm |
|
S |
455 mm |
|
F |
665 mm |
|
L |
460 mm |
|
R |
460 mm |
faq
Company Information
Meenyon, located in mainly supplies Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch. Meenyon sticks to the core value of 'high level, high quality, and high value'. We always seize the opportunity and develop with the times. With the enterprise spirit, we intend to be tough, determined and tenacious. We look forward to cooperating with more outstanding companies in the industry and creating a wonderful future. Meenyon gathers a group of high-quality and high-efficiency talents. They have rich industry experience and exquisite production technology and greatly promote efficient business operation. Meenyon insists on providing customers with reasonable solutions according to their actual needs.
We have been providing high quality ship gearbox for a long time. We look forward to working with you.
