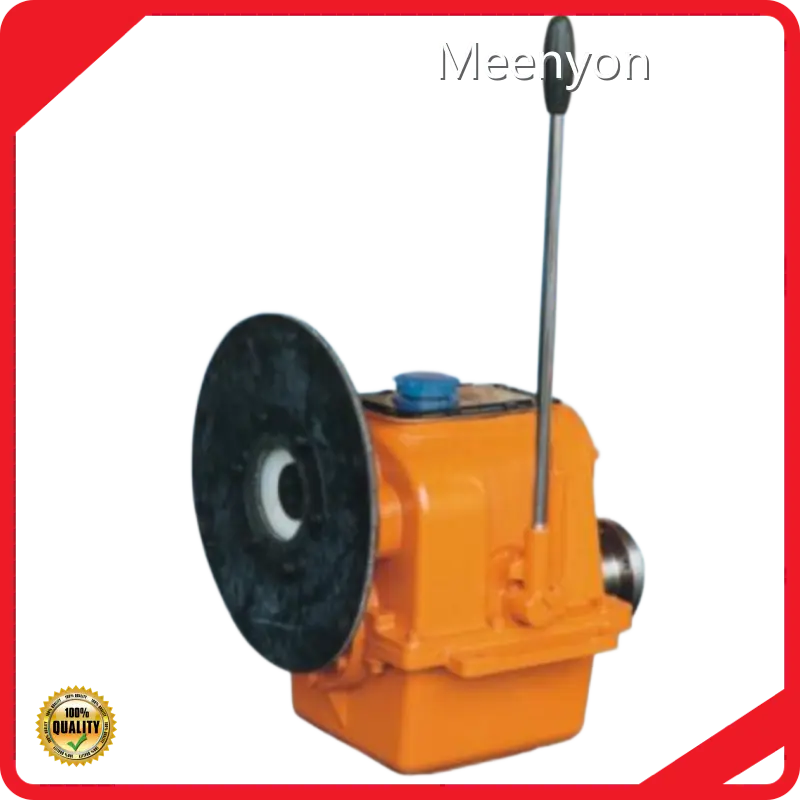

Product details of the container ship gearbox

Quick Overview

Meenyon container ship gearbox is designed to incorporate aesthetics and practicality. All defects are removed from the products during the quality inspection process. Our container ship gearbox meets the needs of multiple industries and fields. Meenyon can not only provide high quality container ship gearbox not also considerate service.

Product Introduction

Based on the professionalism of pursuing excellence, we strive for perfection in every detail of the product.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical joint clutch

Specification

Item	Description	Model 16A
01	Engine speed: 1000-2000 rpm; max 32.2 hp at 2000 rpm
02	Ratio :1	2.07	2.48	2.95	3.35	3.83
03	Rate (hp/rpm)	0.016	0.016	0.016	0.016	0.016
04	Bell housing: 2015C, 395, #3, #4				Flywheel: 2105C, 395, 11.5”, 10”
05	Overall L×W×H: 422×325×563 mm				Dry weight: 84kg
06	Centre distance: 135 mm;
07	Recommend engine:MWM D226-2; HATZ 3M31
08	Rated propeller thrust: 3.5 kN

Dimension

Model 16A
C	135 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
