Latest Heavy Duty Reduction Gearbox Company

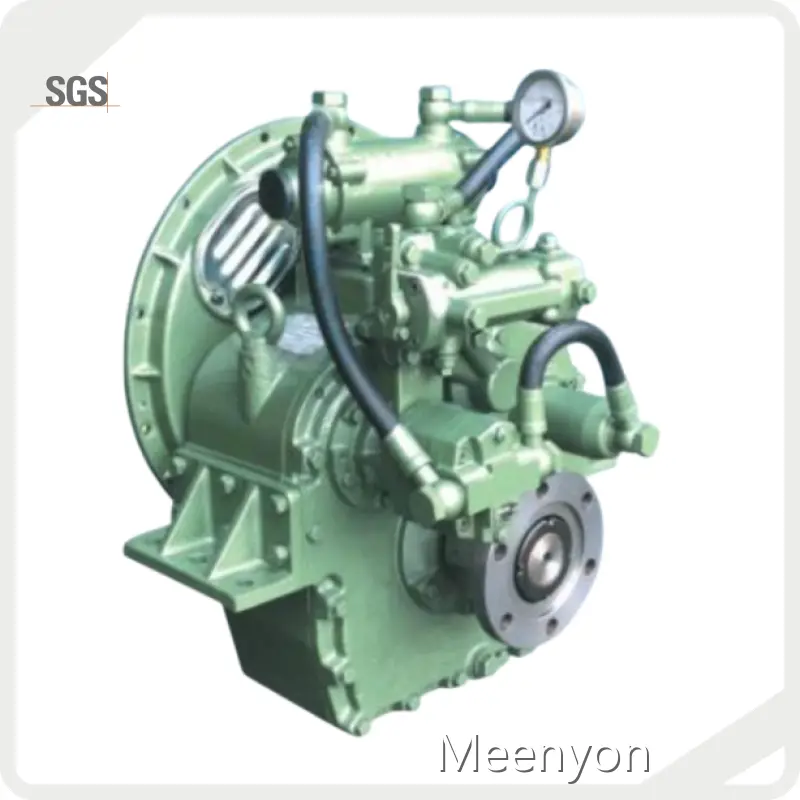

Product details of the heavy duty reduction gearbox

Product Description

The offered Meenyon heavy duty reduction gearbox is crafted using cutting-edge production technology in compliance with the current market standards. The product is of consistently high quality and performance. Meenyon heavy duty reduction gearbox is manufactured using fine quality raw materials under the supervision of experienced professionals.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical or electrical remote control

Specification

Item	Description			Model MB242
01	Engine speed: 1000-2500 rpm; max 345.3 hp at 2500 rpm
02	Reduction Ratio :1	2.00	2.54		3.04	3.52	3.955	4.53	5.12	5.56	5.88
03	Rate (hp/rpm)	0.138	0.138		0.138	0.138	0.138	0.138	0.136	0.128	0.100
04	Bell housing: #1, #2, #3					Flywheel: 11.5”, 14”
05	Overall L×W×H: 422×774×763 mm					Dry weight: 385 kg
06	Centre distance: 242 mm
07	Recommend engine: NT-855-M240, CAT3406, 6135
08	Rated propeller thrust: 30.0 KN

Dimension

Model MB242
C	242 mm
S	244 mm
F	442 mm
L	283 mm
R	283 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Feature

• Our company is located in a place with convenient transportation. Besides, there are logistics companies leading to domestic and international markets. All these make an advantageous condition for facilitating the distribution and transportation of goods.
• Our products gain a large market share in China, and they are also exported to Africa, Southeast Asia and other countries and regions.
• We have a perfect and mature service team. Based on this, we can provide you with excellent services to seek mutual benefit and create a better future!
All customers are sincerely welcomed to contact us for consultation!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
