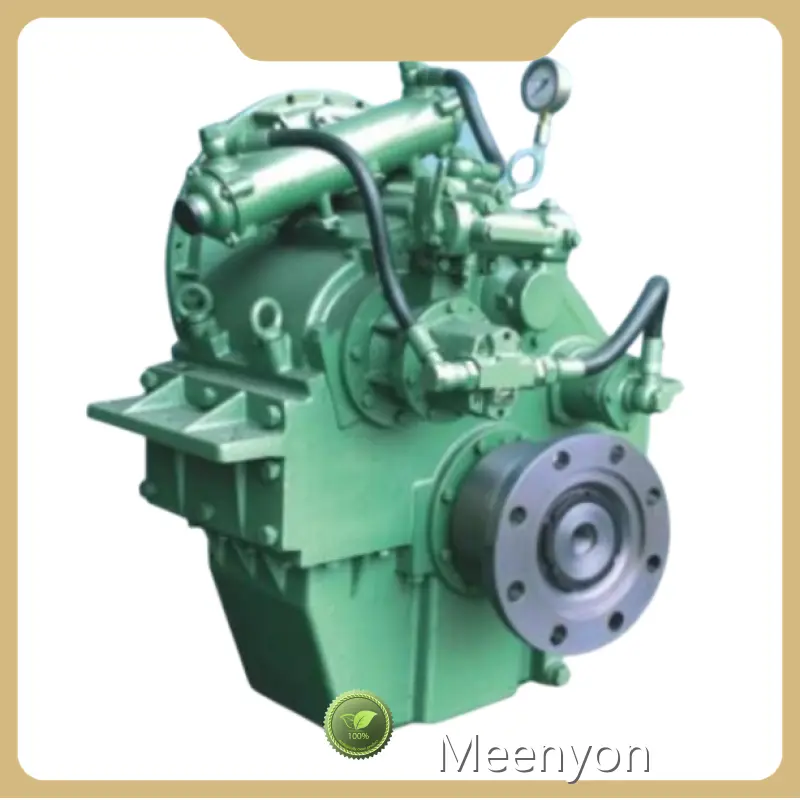

Heavy Duty Reduction Gearbox by Meenyon
Product details of the heavy duty reduction gearbox
Quick Detail
Setting heavy duty reduction gearbox up made by the designers is a positive point for the popularity of Meenyon. This product has a smooth operation due to numerous times of quality testing. The heavy duty reduction gearbox produced by Meenyon can be used in many fields. The product has wide application foreground and potential in its field.
Product Introduction
Meenyon's heavy duty reduction gearbox has been further improved based on advanced technology, as reflected in the following aspects.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
Model D300A |
||||||||
|
01 |
Engine speed: 1000-2500 rpm; max 863 hp at 2500 rpm |
|||||||||
|
02 |
Ratio :1 |
4.00 |
4.48 |
5.05 |
5.52 |
5.90 |
6.56 |
7.06 |
7.63 |
|
|
03 |
Rate (hp/rpm) |
0.345 |
0.326 |
0.296 |
0.247 |
0.247 |
0.247 |
0.197 |
0.168 |
|
|
04 |
Bell housing: #0, #1 |
Flywheel: 18”, 16”, 14” |
||||||||
|
05 |
Overall L×W×H: 786×1010×1041 mm |
Dry weight: 880 kg |
||||||||
|
06 |
Centre distance: 355 mm |
|||||||||
|
07 |
Recommend engine: KTA19-M600; TBD234V12 … |
|||||||||
|
08 |
Rated propeller thrust: 60 kN |
|||||||||
Dimension
|
Model D300A |
|
|
C |
355 mm |
|
S |
355 mm |
|
F |
648 mm |
|
L |
475 mm |
|
R |
475 mm |
