MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

Cost-effective Heavy Duty Reduction Gearbox Company

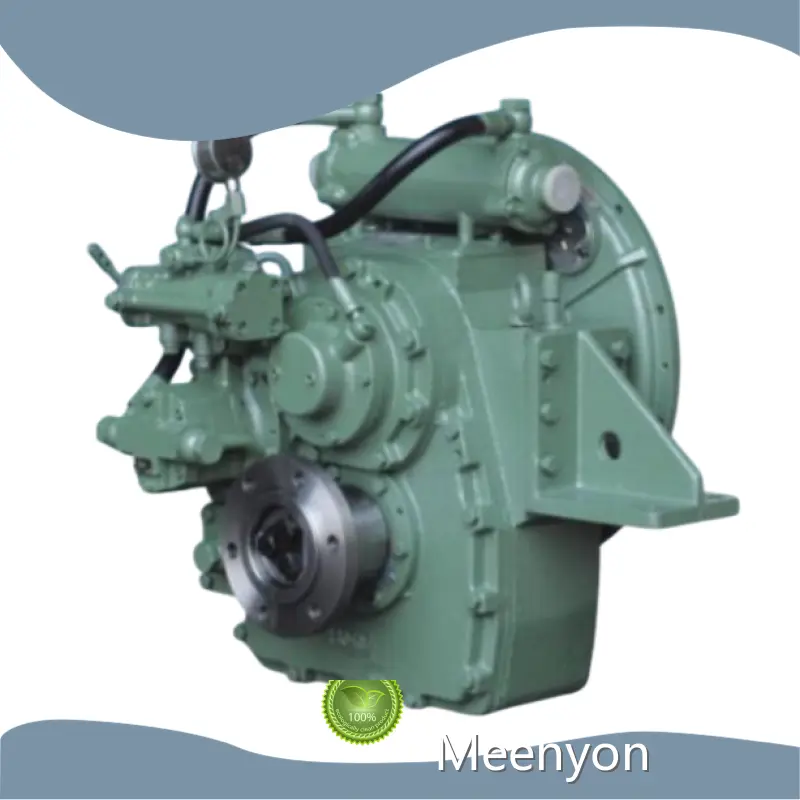

Product details of the heavy duty reduction gearbox

Quick Overview

Each Meenyon heavy duty reduction gearbox is made from only carefully selected materials. The product is tested with the vigilance of our skilled professionals who have a clear understanding of the quality standards set by the industry. This product is widely appreciated among our customers for its wide range of applications.

Product Introduction

With a focus on product quality, Meenyon strives for quality excellence in the production of heavy duty reduction gearbox.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model 120C
01	Engine speed: 1000-2500 rpm; max 335 hp at 2500 rpm
02	Ratio :1	1.48	1.61	1.94	2.45	2.96	3.35
03	Rate (hp/rpm)	0.134	0.134	0.134	0.134	0.121	0.107
04	Bell housing: #1, #2, #3				Flywheel: 14”, 11.5”
05	Overall L×W×H: 432×440×650 mm				Dry weight: 225 kg
06	Centre distance: 180 mm
07	Recommend engine: NT-855-M240; CAT3280TA
08	Rated propeller thrust: 25 kN

Dimension

Model 120C
C	180 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

With continuous innovation, Meenyon is in the leading position in the international heavy duty reduction gearbox market. Meenyon has its own high-tech lab to create heavy duty reduction gearbox. Meenyon now is growing to be a popular heavy duty reduction gearbox supplier. Call!
If you want to know more details of our products, please contact us. We are looking forward to cooperating with you!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
