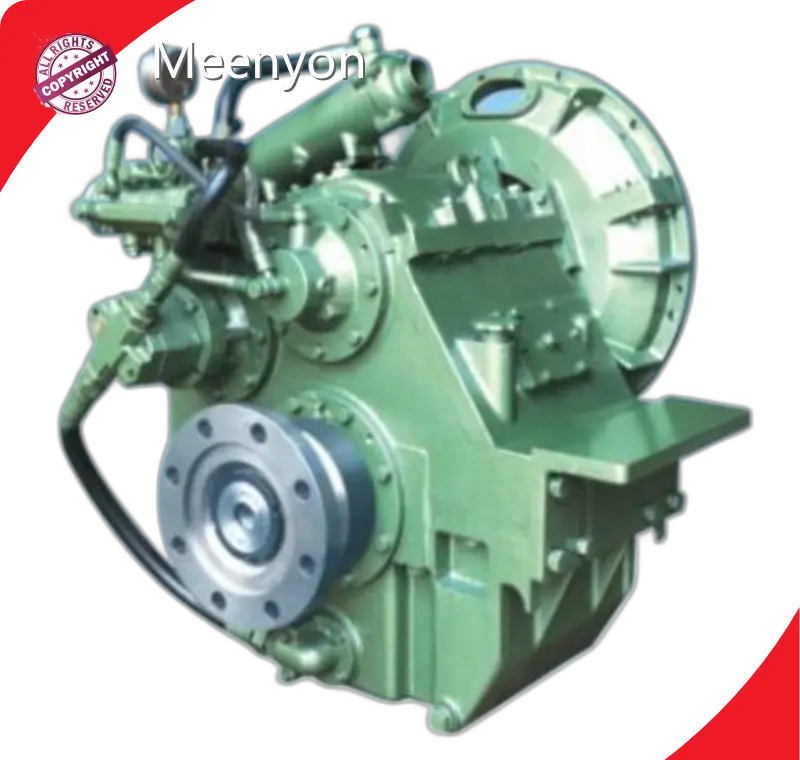

Container Ship Gearbox Marine Gearbox Wholesale - Meenyon

Inquiry

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model 300
01	Engine speed: 750-2500 rpm; max 862.0 hp at 2500 rpm
02	Ratio :1	1.87	2.04	2.54	3.00	3.35	3.53	4.10	4.47	4.61	4.94	5.44
03	Rate (hp/rpm)	0.345	0.345	0.345	0.326	0.296	0.296	0.296	0.296	0.247	0.197	0.168
04	Bell housing: #0, #1				Flywheel: SAE 18”,16”,14”
05	Overall L×W×H:786×930×864mm				Dry weight: 740kg
06	Centre distance: 264mm ;
07	Recommend engine:KTA19-M600, TBD234V12…
08	Rated propeller thrust: 50kN

Dimension

Model 300
C	264mm
S	270mm
F	648mm
L	435mm
R	435mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

· The design of Meenyon container ship gearbox is original and appealing.

· Its quality test is conducted by a professional team.

· Quality is what Meenyon pays the most importance to.

Company Features

· Meenyon is a leader in container ship gearbox field.

· We have an experienced production management team. They excel at adopting a strategic approach to manage the complexity in order to drive down and control production costs.

· We have experience in processing container ship gearbox exporting to countries around the world. Please contact.

Application of the Product

The container ship gearbox produced by Meenyon has a wide range of applications.

We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
