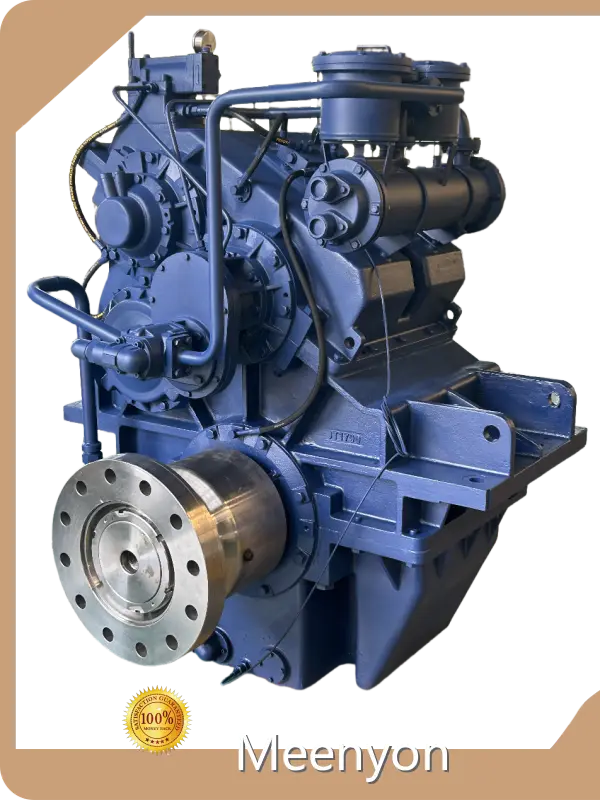

Container Ship Gearbox by Meenyon
Product details of the container ship gearbox
Product Description
Meenyon container ship gearbox is attractive in the industry for its appealing designs. The product has been tested for many times under the rigorous quality control system. Enough storage capacity in Meenyon can also guarantee the special order from customers.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T1600 |
|
|
|
|
|||||||||
|
01 |
Engine speed: 500-1650 rpm; max 2680 hp at 1650 rpm |
|
|
|
|
|||||||||||
|
02 |
Reduction Ratio :1 |
5.55 | 5.97 | 6.59 | 6.99 | 7.44 | 7.65 | 7.92 | 8.46 | 9.00 | 9.53 | 10.17 | 10.87 | 11.65 | 12.52 | |
|
03 |
Rate (hp/rpm) |
1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 1.479 | 1.246 | 1.246 | 1.320 | 1.320 | 1.160 | 1.080 | |
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|
|
|
|
|||||||||
|
05 |
Overall L×W×H: 1246×1500×1750 mm |
|
Dry weight: 5000 kg |
|
|
|
|
|||||||||
|
06 |
Centre distance: 585 mm |
|
|
|
|
|||||||||||
|
07 |
Recommend engine: |
|
|
|
|
|||||||||||
|
08 |
Rated propeller thrust: 250 KN |
|
|
|
|
|||||||||||
Dimension
|
Model T1600 |
|
|
C |
585 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
