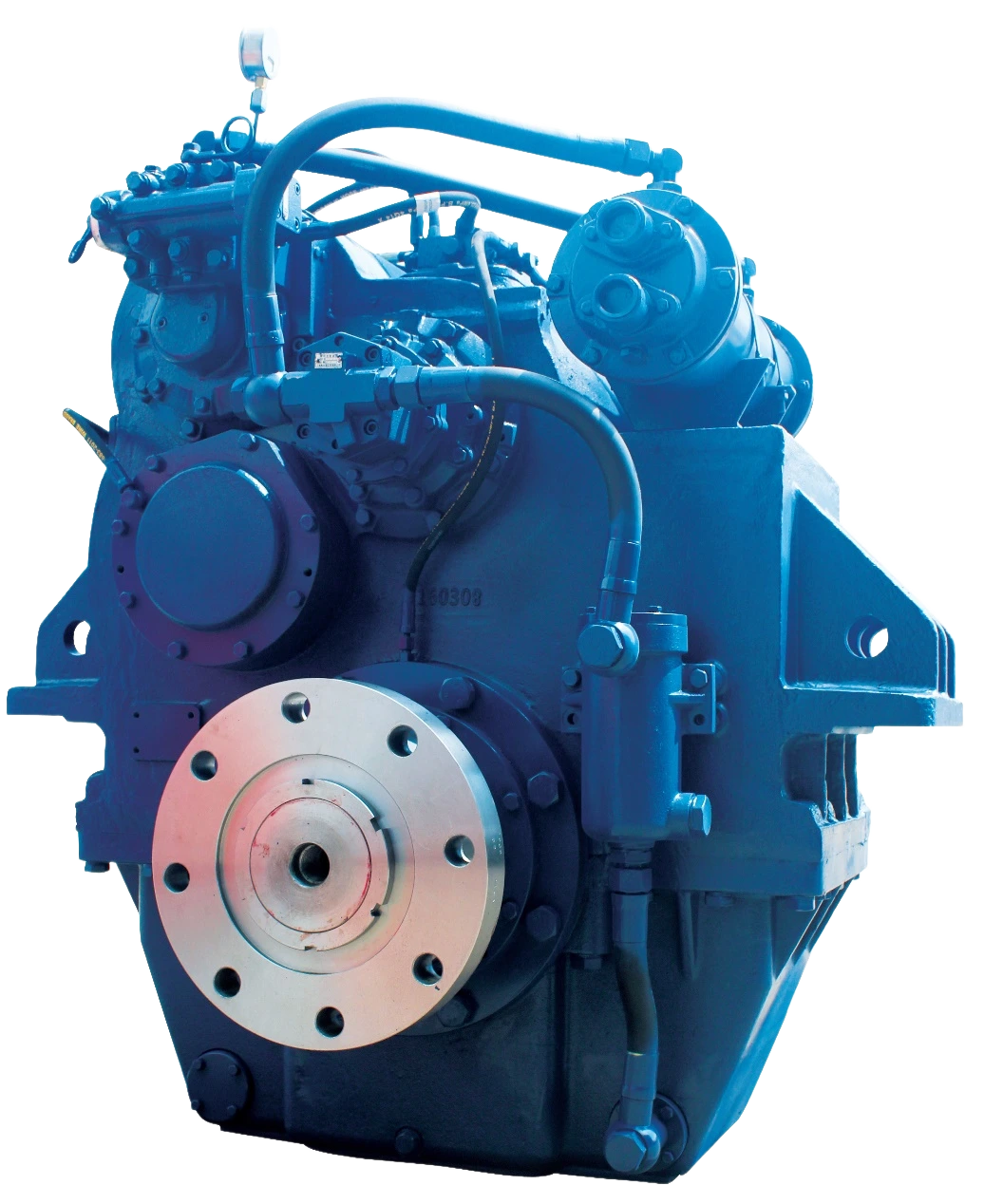

MEDIUM AND HEAVY DUTY MARINE GEARBOX MODEL T600A-1
Apply to:
Fishing boats, transport ships, passenger ships, tugs and all kinds of engineering ships.
Standard equipment:
● Mechanical control valve
● Oil cooler
● Companion flange / Reamer bolts
● Flexible flywheel coupling (selection)
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Spesifikasi
Item | Description |
| Model T600A-1 |
|
|
|
|
| ||||||||
01 | Engine speed: 1000-2100 rpm; max 1242 hp at 2100 rpm |
|
|
|
|
| ||||||||||
02 | Reduction Ratio :1 | 6.09 | 6.48 | 7.04 | 7.69 | 8.23 | 8.82 | 9.47 | 10.10 | 10.80 | 11.65 | 12.57 | 13.64 | 14.44 | 15.91 | |
03 | Rate (hp/rpm) | 0.591 | 0.591 | 0.591 | 0.591 | 0.591 | 0.552 | 0.536 | 0.503 | 0.503 | 0.473 | 0.444 | 0.365 | 0.345 | 0.274 | |
04 | Bell housing: #00,#0, #1 | Flywheel: 14”, 16”,18”,21” |
|
|
|
|
| |||||||||
05 | Overall L×W×H: 878×1224×1346 mm | Dry weight: 1700 kg |
|
|
|
|
| |||||||||
06 | Centre distance: 500 mm |
|
|
|
|
| ||||||||||
07 | Recommend engine: KTA38-M940, CAT3508TA TBD234V16… |
|
|
|
|
| ||||||||||
08 | Rated propeller thrust: 140 KN |
|
|
|
|
| ||||||||||
Dimension
Model T600A-1 | |
C | 500 satuan |
S | satuan |
F | satuan |
L | satuan |
R | satuan |
