Worldwidemarine Gearbox Supplier

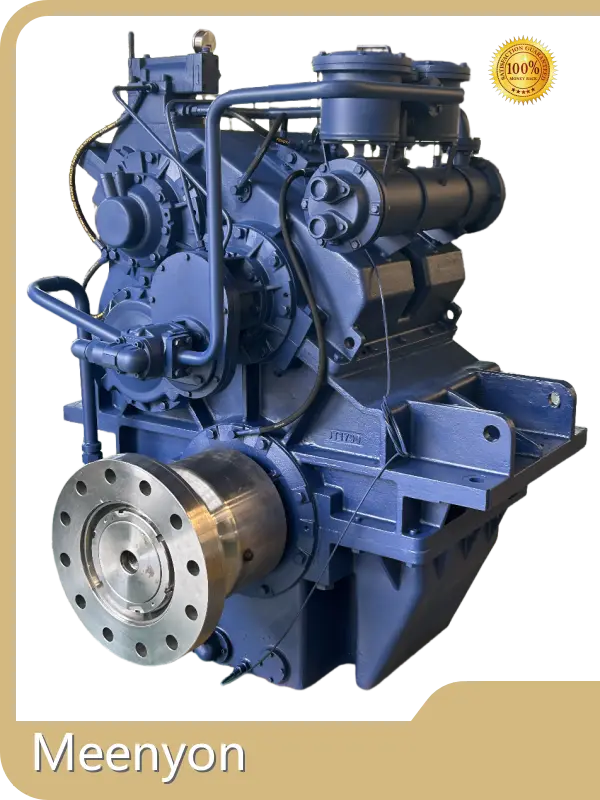

Product details of the marine gearbox supplier
Product Description
The raw material of Meenyon marine gearbox supplier is sourced from reliable vendors of the market. The product has passed the international certification in all respects, such as functionality, performance, and quality. The product has won huge attention and praises from customers in the market.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T1600-1 |
|
|
|
|
|||||||||
|
01 |
Engine speed: 500-1650 rpm; max 2680 hp at 1650 rpm |
|
|
|
|
|||||||||||
|
02 |
Reduction Ratio :1 |
8.02 | 8.41 | 9.12 | 9.58 | 10.08 | 10.60 | 11.20 | 12.00 | 12.50 | 13.43 | 14.24 | 15.12 | 16.10 | 16.90 | |
|
03 |
Rate (hp/rpm) |
1.627 | 1.627 | 1.627 | 1.627 | 1.627 | 1.627 | 1.627 | 1.627 | 1.570 | 1.460 | 1.380 | 1.300 | 1.220 | 1.000 | |
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|
|
|
|
|||||||||
|
05 |
Overall L×W×H: 1280×1704×2040 mm |
|
Dry weight: 5500 kg |
|
|
|
|
|||||||||
|
06 |
Centre distance: 680 mm |
|
|
|
|
|||||||||||
|
07 |
Recommend engine: |
|
|
|
|
|||||||||||
|
08 |
Rated propeller thrust: 270 KN |
|
|
|
|
|||||||||||
Dimension
|
Model T1600-1 |
|
|
C |
680 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
