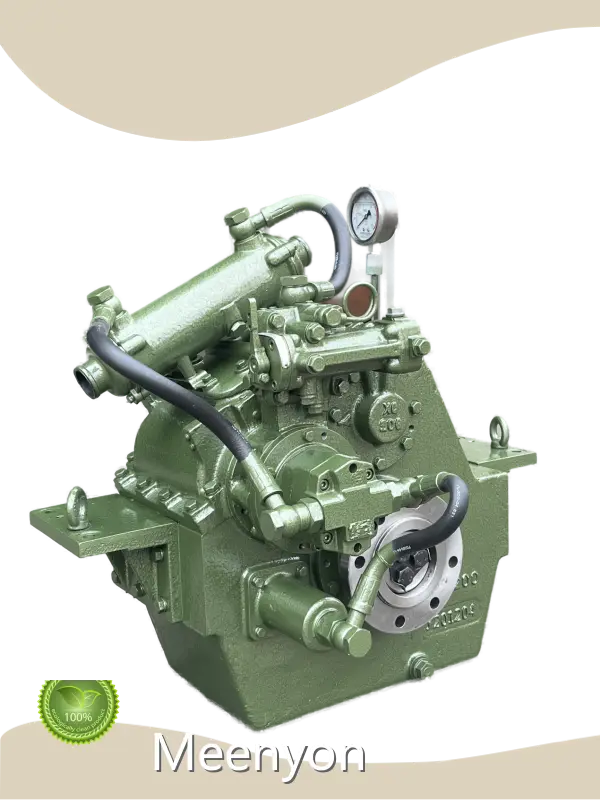

Product details of the yacht gearbox

Product Description

It is useful for Meenyon to begin to focus on the design of yacht gearbox. Strict testing: the product undergoes extremely strict testing more than once to achieve its superiority over other products. The testing is conducted by our rigorous testing personnel. Meenyon has precise market positioning and unique concept for yacht gearbox.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 7° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model A300 10°
01	Engine speed: 1000-26000 rpm; max 385 hp at 2600 rpm.
02	Reduction Ratio :1	1.01	1.28	1.50	2.03	2.52	2.95
03	Rate (hp/rpm)	0.148	0.148	0.148	0.148	0.148	0.114
04	Bell housing: SAE #1,#2,				Flywheel: SAE 14”, 11.5”
05	Overall L×W×H: 530×660×616mm				Dry weight: 200 kg
06	Centre distance: 185mm ; 10° down angle on output shaft
07	Recommend engine:NT-855-M240, MWM D234 V8 …
08	Rated propeller thrust: 25 kN

Dimension

Model A300 10°
C	185mm
S
F
L
R
A	10°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Feature

• Meenyon is committed to providing quality, efficient, and convenient services for customers.
• Our company has obvious advantages in location and the transportation is convenient, laying a good foundation for the development.
• Our products are sold well at home and abroad.
• Our company attaches great importance to the introduction and cultivation of talents. Therefore, we create a high-level talent team with great education background and professional skills.
• Since the beginning in Meenyon has had a history of years and accumulated rich industry experience.
Various electric equipment is in abundant supply in Meenyon and you can choose freely according to your demand. If interested, please contact us to discuss business.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
