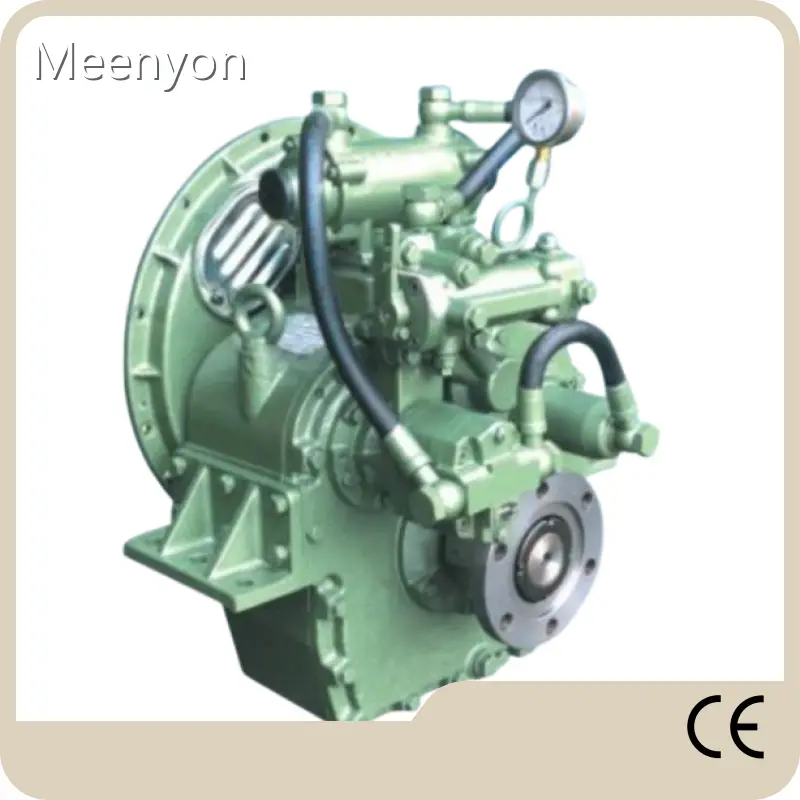

Product details of the marine transmission gearbox

Product Overview

Meenyon can offer customers all kinds of marine transmission gearbox with different sizes and colors. The product is of reliable quality and can be used for a long time. This product is in great demand and we have on hand many enquiries from other countries.

Product Description

Compared with peer products, our marine transmission gearbox has more obvious advantages and they are reflected in the following aspects.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model Q502
01	Engine speed: 1000-2300 rpm; max 1242 hp at 2300 rpm
02	Reduction Ratio :1	2.71		2.95
03	Rate (hp/rpm)	0540		0.540
04	Bell housing: SAE #0, #1		Flywheel: 14”, 16”,18”
05	Overall L×W×H: 742×856×980 mm		Dry weight: 700 kg
06	Centre distance: 264 mm
07	Recommend engine: KTA38-M940, CAT3508TA, TBD234V16 …
08	Rated propeller thrust: 60 KN

Dimension

Model Q502
C	264 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
