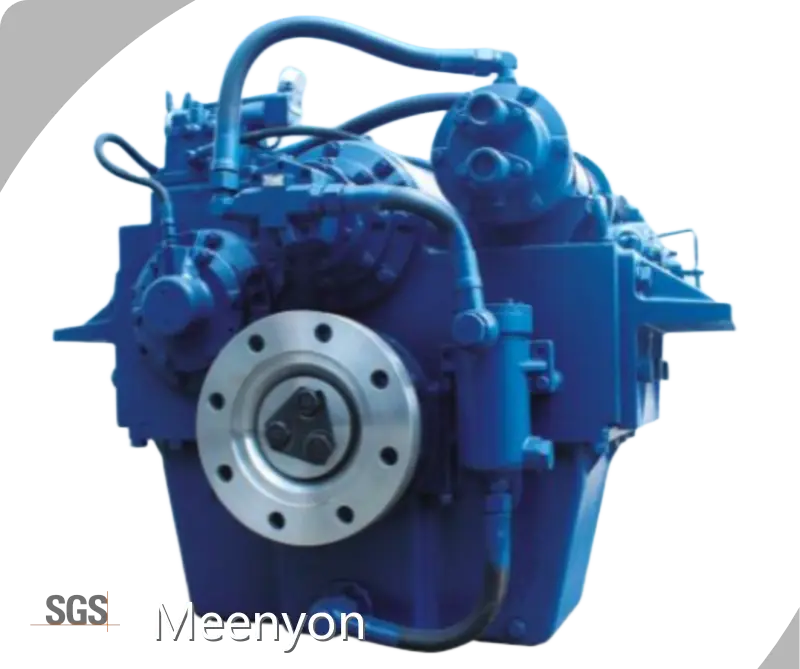

Worldwide Light Duty Gearbox
Product details of the light duty gearbox
Product Introduction
Meenyon light duty gearbox is produced in a highly standardized production environment. The product is of the highest quality, performance and durability. Our light duty gearbox can be customized according to customer's requirements.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model 600A |
|||||||
|
01 |
Engine speed: 1000-2100 rpm; max 1380 hp at 2100 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
2.00 | 2.48 | 3.00 | 3.58 | 3.89 | ||||
|
03 |
Rate (hp/rpm) |
0.657 | 0.657 | 0.657 | 0.657 | 0.657 | ||||
|
04 |
Bell housing: #00,#0, #1 |
Flywheel: 14”, 16”,18”,21” |
||||||||
|
05 |
Overall L×W×H: 745×1214×1126 mm |
Dry weight: 1300 kg |
||||||||
|
06 |
Centre distance: 320 mm |
|||||||||
|
07 |
Recommend engine: KTA38-M1045, CAT3508B, TBD604BV8… |
|||||||||
|
08 |
Rated propeller thrust: 90 KN |
|||||||||
Dimension
|
Model 600A |
|
|
C |
320 mm |
|
S |
365 mm |
|
F |
745 mm |
|
L |
442 mm |
|
R |
442 mm |
