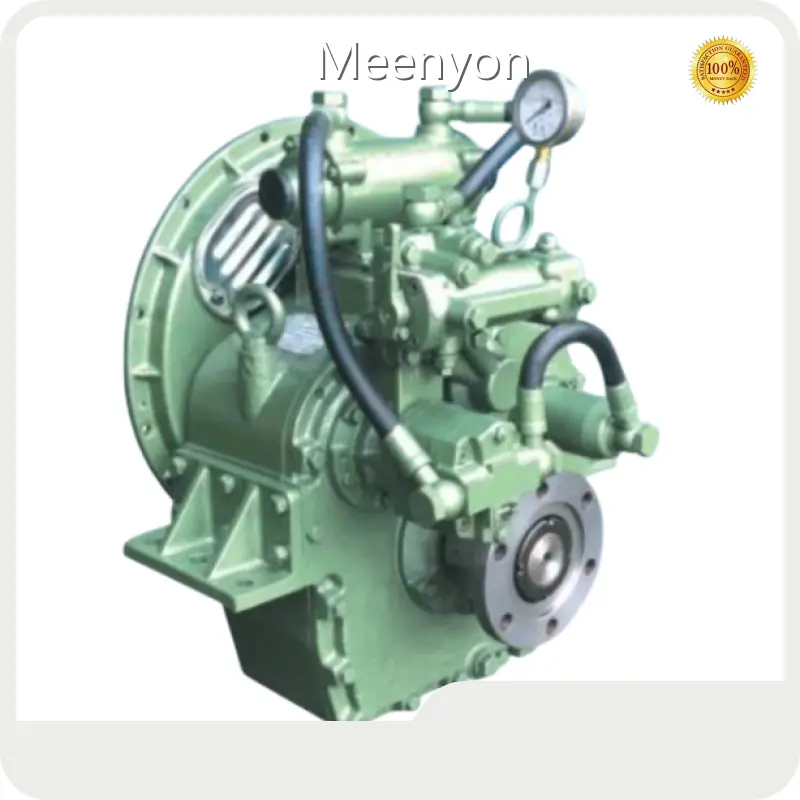

Product details of the light duty gearbox

Quick Overview

The design of Meenyon light duty gearbox follows the latest trends. We fully make use of the cutting edge technology to achieve high-quality product. The light duty gearbox produced by Meenyon is very popular in the market and is widely used in industry. Meenyon has professional R&D team and after-sales team in order to provide reasonable quality products and service to customers.

Product Introduction

Compared with other similar products, our light duty gearbox has the following advantages.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description			Model D300A
01	Engine speed: 1000-2500 rpm; max 863 hp at 2500 rpm
02	Reduction Ratio :1	4.00	4.48		5.05	5.52	5.90	6.56	7.06	7.36
03	Rate (hp/rpm)	0.345	0.326		0.296	0.247	0.247	0.247	0.197	0.168
04	Bell housing: #0, #1					Flywheel: 14”, 16”,18”
05	Overall L×W×H: 786×1010×1041 mm					Dry weight: 880 kg
06	Centre distance: 355 mm
07	Recommend engine: KTA19-M600; TBD234V12 …
08	Rated propeller thrust: 60 KN

Dimension

Model D300A
C	355 mm
S	355 mm
F	648 mm
L	475 mm
R	475 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Introduction

Meenyon has become a Chinese top manufacturer. We are recognized for the ability in developing and manufacturing light duty gearbox. Undergoing difficulties to improve the quality of light duty gearbox turns out to be efficient for Meenyon. Improving customer satisfaction is our goal. We will seriously consider customer suggestions, handle customer complaints, and strive to give solutions within one day.
Welcome to contact us.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
