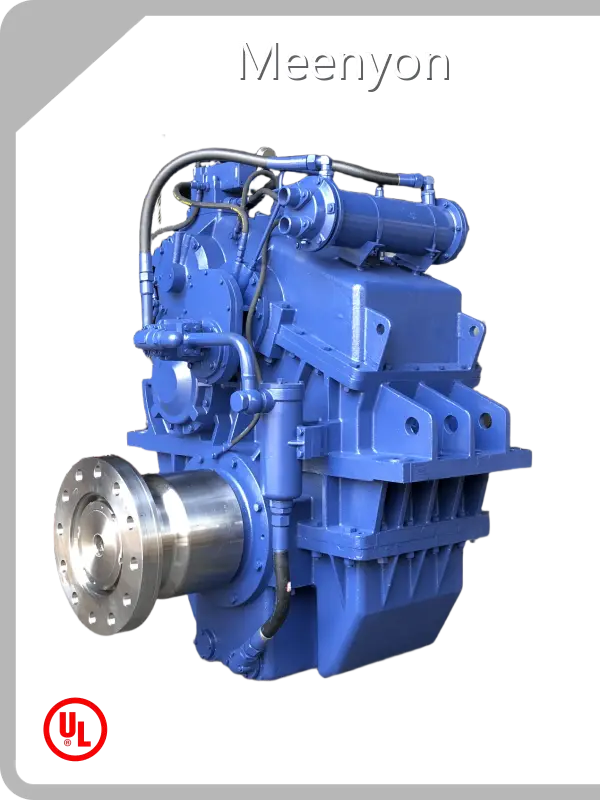

Topmarine Transmission Gearbox
Company Advantages
· The novel design put forward by Meenyon realizes more scientific and efficient management of marine transmission gearbox.
· The product is rather reliable in quality and can be used for a long time.
· Meenyon provides reliable on-sale service.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T1400 |
|
|
|
|
|
|||||||||
|
01 |
Engine speed: 600-1900 rpm; max 2624 hp at 1900 rpm |
|
|
|
|
|
|||||||||||
|
02 |
Reduction Ratio :1 |
4.06 | 4.51 | 5.03 | 5.52 | 5.97 | 6.48 | 7.03 | 7.50 | 8.01 | 8.47 | 8.59 | 8.98 | 9.12 | 9.55 | 11.06 | |
|
13.9703 |
Rate (hp/rpm) |
1.381 | 1.381 | 1.381 | 1.381 | 1.381 | 1.381 | 1.381 | 1.381 | 1.381 | 1.341 | 1.278 | 1.247 | 1.207 | 1.140 | 0.986 | |
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|
|
|
|
|
|||||||||
|
05 |
Overall L×W×H: 1306×1380×1250 mm |
|
Dry weight: 3800 kg |
|
|
|
|
|
|||||||||
|
06 |
Centre distance: 550 mm |
|
|
|
|
|
|||||||||||
|
07 |
Recommend engine: |
|
|
|
|
|
|||||||||||
|
08 |
Rated propeller thrust: 220 KN |
|
|
|
|
|
|||||||||||
Dimension
|
Model T1400 |
|
|
C |
550 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
faq
Company Features
· Meenyon is granted as top 10 brands in the industry of marine transmission gearbox.
· Meenyon has introduced first-class machines to guarantee the quality of marine transmission gearbox.
· We firmly believe that we will be your most worthy marine transmission gearbox business partner! Get quote!
Product Comparison
Compared with similar products, our marine transmission gearbox is provided with the following competitive advantages.
Enterprise Advantages
Meenyon has a group of skilled professionals and advanced technology and equipment to ensure high quality of products.
Meenyon insists on providing sincere services to seek common development with customers.
Our company takes the technology as driving force, and insists on the corporate culture of 'harmony, integrity, pragmatism, struggle, and innovation'. We improve work efficiency by management, and provide customers with assured products.
Through years of efforts, Meenyon strives to make Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch more refined, richer and more representative.
Meenyon's sales network spans many regions at home and abroad.
