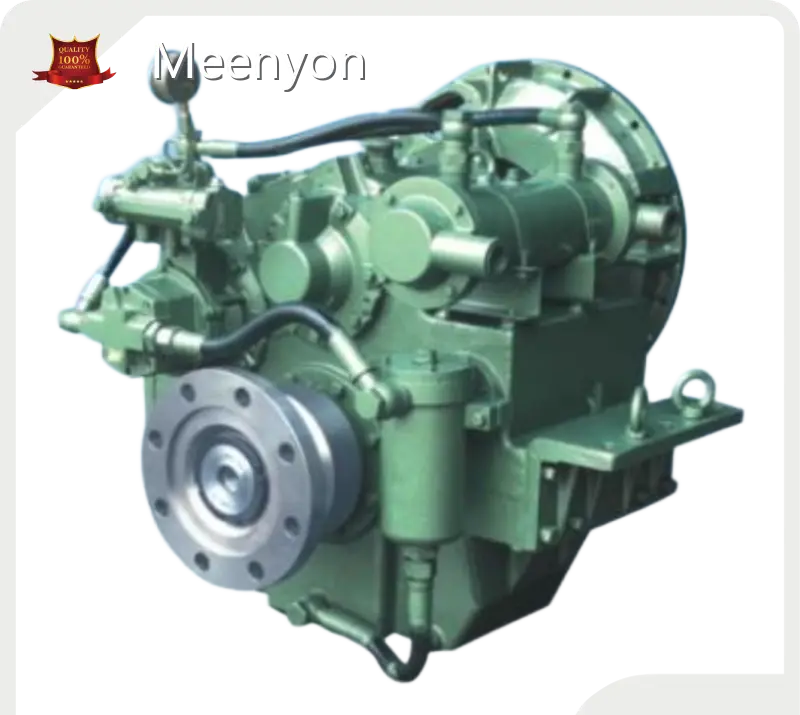

Top Sellinghigh Speed Gearbox Manufacturers
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T400A |
|||||||
|
01 |
Engine speed: 1000-2100 rpm; max 932 hp at 2100 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
6.09 | 6.49 | 6.93 | 7.42 | 7.96 | 8.40 | 9.00 | 9.47 | |
|
03 |
Rate (hp/rpm) |
0.444 | 0.444 | 0.444 | 0.414 | 0.385 | 0.355 | 0.326 | 0.326 | |
|
04 |
Bell housing: #00, #0, #1 |
Flywheel: 14”, 16”,18” |
||||||||
|
05 |
Overall L×W×H: 784×992×1130 mm |
Dry weight: 1450 kg |
||||||||
|
06 |
Centre distance: 375 mm |
|||||||||
|
07 |
Recommend engine: KT38-M800, TBD604BL6, CAT3412TA… |
|||||||||
|
08 |
Rated propeller thrust: 82 KN |
|||||||||
Dimension
|
Model T400A |
|
|
C |
375 mm |
|
S |
370 mm |
|
F |
784.3 mm |
|
L |
416 mm |
|
R |
416 mm |
faq
Company Advantages
· The design of high speed gearbox manufacturers is scientific and rational.
· By improving production plan and adjusting crafts installation, Meenyon has been always producing high speed gearbox manufacturers with high performance.
· With professional development team, Meenyon has more confidence to develop more high speed gearbox manufacturers.
Company Features
· Meenyon has upgraded competition ability in the high speed gearbox manufacturers industry over the years.
· Our company has an experienced design and production team in developing high speed gearbox manufacturers.
· Meenyon will unswervingly promote the healthy and sustainable development of itself. Get an offer!
Application of the Product
high speed gearbox manufacturers is one of the main products of Meenyon. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers.
With many years of practical experience, Meenyon is capable of providing comprehensive and efficient one-stop solutions.
