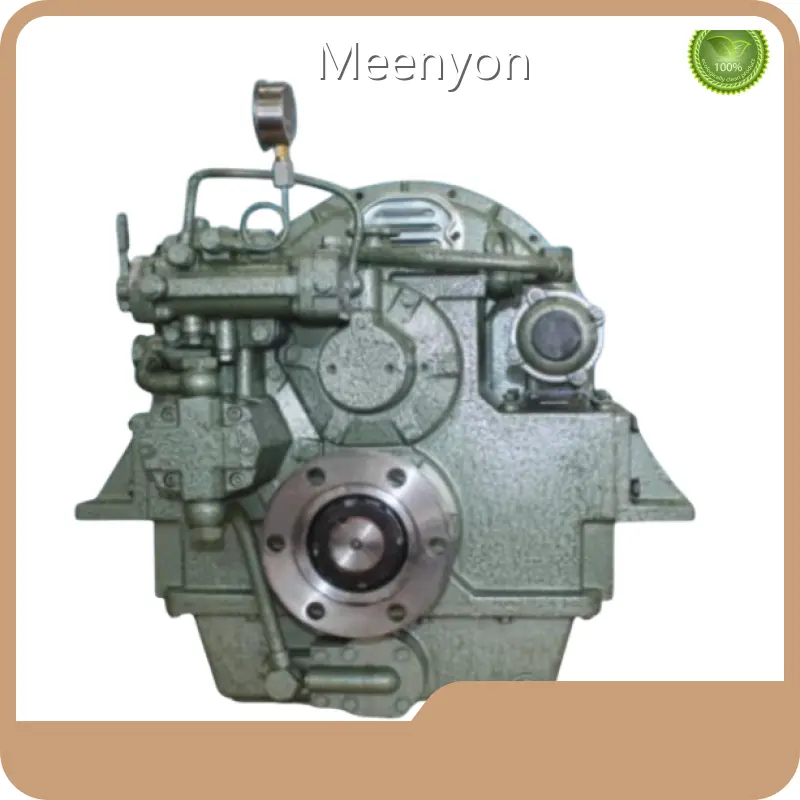

Product details of the yacht gearbox

Product Description

Such design idea as yacht gearbox provides beneficial inspiration for the improvement of R&D abilities of Meenyon. The quality of this product is guaranteed and has many international certificates, such as ISO certificates. Meenyon offers affordable premium prices for yacht gearbox as well as excellent service experience.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical or electrical remote control

Specification

Item	Description				Model Q401
01		Engine speed: 1000-2300 rpm; max 1012 hp at 2300 rpm
02	Reduction Ratio :1		1.00	1.12		1.25	1.41	1.50	1.76	2.04	2.50
03	Rate (hp/rpm)		0.440	0.440		0.440	0.440	0.440	0.440	0.440	0.39
04	Bell housing: SAE #0, #1						Flywheel: 14”, 16”,18”
05	Overall L×W×H: 640×900×800 mm						Dry weight: 480 kg
06		Centre distance: 220 mm
07		Recommend engine: KTA38-M800, CAT3412TA, TBD604BL6 …
08		Rated propeller thrust: 50 KN

Dimension

Model Q401
C	220 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
