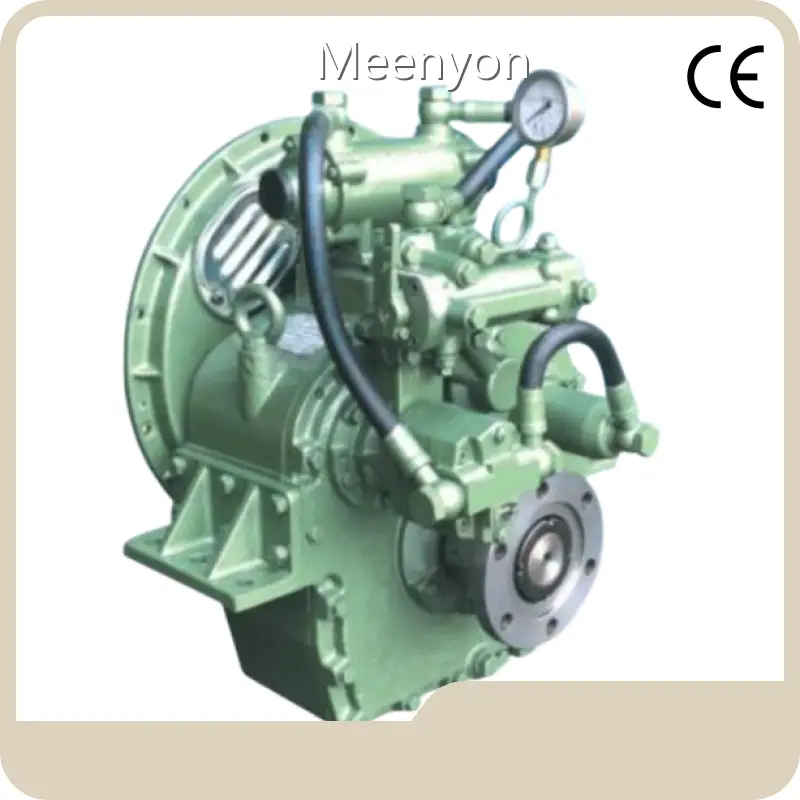

Top Selling Marine Transmission System
Product details of the marine transmission system
Product Information
As our workers conduct manufacturing by using the latest technologies, Meenyon marine transmission system is exquisite in every detail. The product is poppular on the market with powerful functions and stable performance. Meenyon has always been committed to the research and development of marine transmission system.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T300-1 |
|||||
|
01 |
Engine speed: 1000-2300 rpm; max 605 hp at 2300 rpm |
|||||||
|
02 |
Reduction Ratio :1 |
8.94 | 9.45 | |||||
|
03 |
Rate (hp/rpm) |
0.263 | 0.263 | |||||
|
04 |
Bell housing: #0, #1 |
Flywheel: 14”, 16”,18” |
||||||
|
05 |
Overall L×W×H: 772×980×1106 mm |
Dry weight: 1120 kg |
||||||
|
06 |
Centre distance: 355 mm |
|||||||
|
07 |
Recommend engine: KTA19-M600; TBD234V12T … |
|||||||
|
08 |
Rated propeller thrust: 70 KN |
|||||||
Dimension
|
Model T300-1 |
|
|
C |
355 mm |
|
S |
455 mm |
|
F |
665 mm |
|
L |
460 mm |
|
R |
460 mm |
