MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

Top Selling Marine Gearbox Manufacturers Marine Gearbox Manufacturers Company

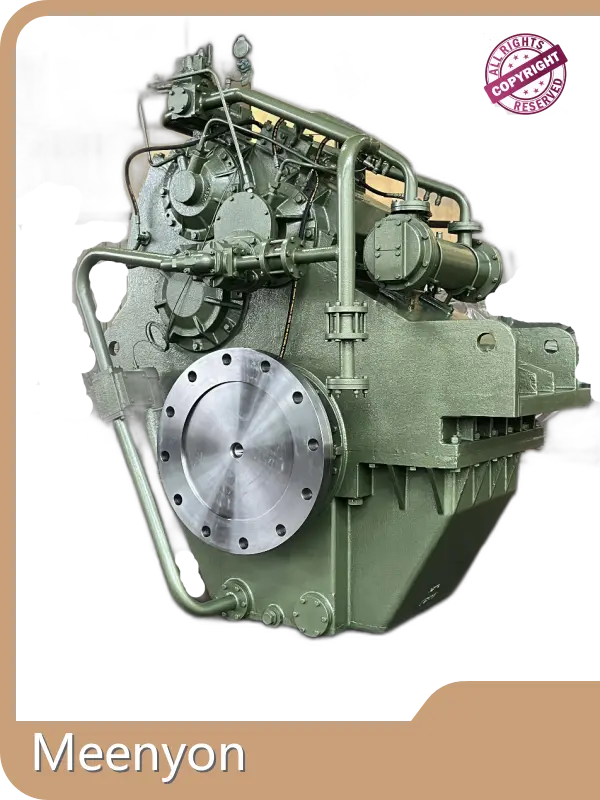

Product details of the marine gearbox manufacturers

Product Description

Meenyon marine gearbox manufacturers is manufactured by a sophisticated production process. The product is user-friendly and has long-lasting performance. The quality of marine gearbox manufacturers is superior with superior material and advanced process.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model D2700
01	Engine speed: 500-14000 rpm; max 3849 hp at 1400 rpm.
02	Ratio :1	3.65	4.04	4.50	5.05	5.48	6.11
03	Rate (hp/rpm)	2.749	2.749	2.749	2.749	2.628	2.279
04	Bell housing: NO				Flywheel: main engine
05	Overall L×W×H: 1400×1780×1530 mm				Dry weight: 4930kg
06	Centre distance: 630mm
07	Recommend engine:
08	Rated propeller thrust: 280kN

Dimension

Model D2700
C	630mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantage

• We have cast our sales network to the whole country. Most products are also sold to foreign countries and regions including br /> • Our company has own research team and strong technical force, which provides a solid backing for our product development and manufacturing. We also establish a production-study model with enterprises as the main body, and cooperates with many scientific research institutions in the industry to promote the industrialization of research findings.
• Meenyon has built a sound service system to provide one-stop services such as product consultation, professional debugging, skills training, and after-sales service.
Meenyon's Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch are of reliable quality and affordable price. If you have any interest in our products, feel free to call us.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
