Top Marine Transmission System Price List

Inquiry

Company Advantages

· All the raw materials of Meenyon marine transmission system are in concord with international standard.

· The strict quality control system and the operation flow are formulated to improve the quality of finished product.

· Meenyon has won high attention and praise from marine transmission system industry and market.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

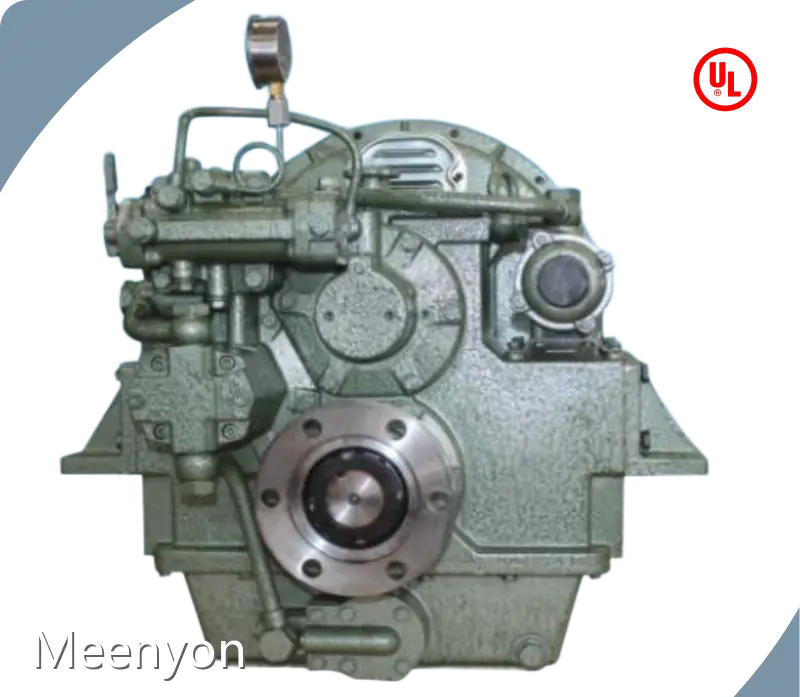

Item	Description	Model MB170
01	Engine speed: 1000-2500 rpm; max 130.8 hp at 2500 rpm
02	Ratio :1	1.97	2.52	3.04	3.54	3.96	4.50	5.06	5.47	5.88
03	Rate (hp/rpm)	0.052	0.052	0.052	0.052	0.052	0.042	0.042	0.037	0.037
04	Bell housing: #1,#2, #3				Flywheel: 10”, 11.5”, 14”
05	Overall L×W×H: 510×670×656 mm				Dry weight: 240kg
06	Centre distance: 170 mm;
07	Recommend engine:YAMAHA ME400L, MWM D226-6, 4135Ca X6110C
08	Rated propeller thrust: 16.0 kN

Dimension

Model MB170
C	170 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Features

· As a leading domestic manufacturer of marine transmission system, Meenyon is consistently improving and re-expanding in scale.

· With strong scientific research and development capacities, the technical capabilities of Meenyon are widely recognized. With advanced technologies competitiveness, our company occupies a wide overseas market of marine transmission system.

· Constant innovation and improvement will be made in marine transmission system. Call now!

Product Details

Meenyon pays great attention to details of marine transmission system.

Product Comparison

Compared with the same kind of products in the industry, marine transmission system has the following highlights due to the better technical capability.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
