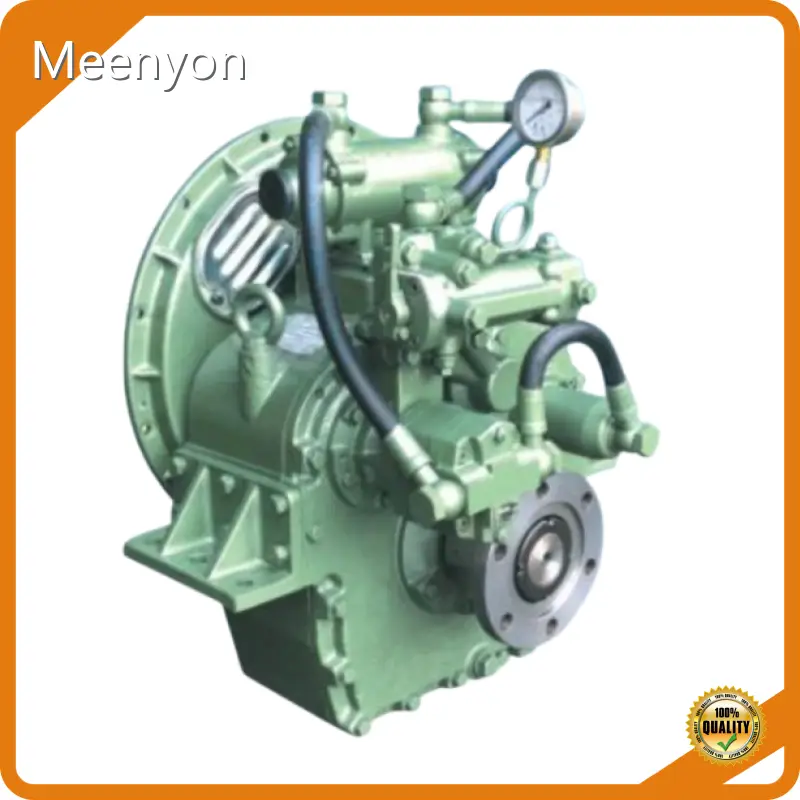

Small Marine Gearbox by Meenyon
Product details of the small marine gearbox
Product Overview
While producing Meenyon small marine gearbox, every manufacturing machine is strictly checked before starting. The product is of high quality and reliable. The small marine gearbox developed and produced by our company is widely applied to many industries and fields, and it can fully meet the diversified needs of customers. Meenyon is one of biggest company to produce high quality small marine gearbox.
Product Introduction
Based on the professionalism of pursuing excellence, we strive for perfection in every detail of the product.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● Mechanical or electrical remote control
Specification
|
Item |
Description |
|
Model Q501 |
|||||||
|
01 |
Engine speed: 1000-2300 rpm; max 1242 hp at 2300 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
1.03 |
1.46 |
1.56 |
1.88 |
2.00 |
2.45 |
|
|
|
|
03 |
Rate (hp/rpm) |
0.540 |
0.540 |
0.540 |
0.540 |
0.540 |
0.510 |
|
|
|
|
04 |
Bell housing: SAE #0, #1 |
Flywheel: 14”, 16”,18” |
||||||||
|
05 |
Overall L×W×H: 742×856×950 mm |
Dry weight: 650 kg |
||||||||
|
06 |
Centre distance: 235 mm |
|||||||||
|
07 |
Recommend engine: KTA38-M940, CAT3508B, TBD234V16 … |
|||||||||
|
08 |
Rated propeller thrust: 55 KN |
|||||||||
Dimension
|
Model Q501 |
|
|
C |
235 mm |
|
S |
|
|
F |
|
|
L |
|
|
R |
|
