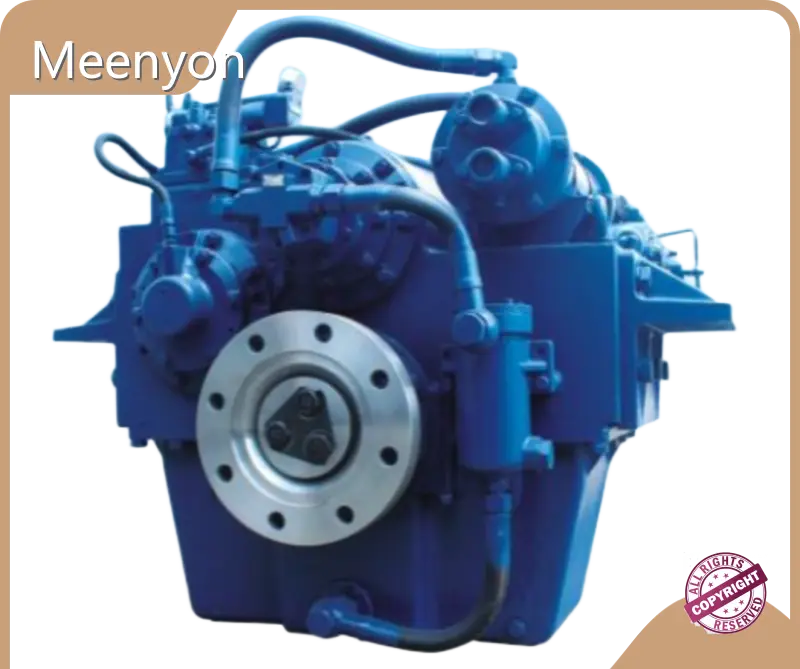

Product details of the marine transmission system

Product Overview

Meenyon marine transmission system is well-structured, bringing visual enjoy. Our quality experts test this product on different parameters, so as to maintain the quality. marine transmission system, one of Meenyon's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields. Valuing the comments of customers will be conducive to the improvement of Meenyon.

Product Introduction

Next, Meenyon will present you with the specific details of marine transmission system.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description			Model 600A
01	Engine speed: 1000-2100 rpm; max 1380 hp at 2100 rpm
02	Reduction Ratio :1	2.00	2.48		3.00	3.58	3.89
03	Rate (hp/rpm)	0.657	0.657		0.657	0.657	0.657
04	Bell housing: #00,#0, #1					Flywheel: 14”, 16”,18”,21”
05	Overall L×W×H: 745×1214×1126 mm					Dry weight: 1300 kg
06	Centre distance: 320 mm
07	Recommend engine: KTA38-M1045, CAT3508B, TBD604BV8…
08	Rated propeller thrust: 90 KN

Dimension

Model 600A
C	320 mm
S	365 mm
F	745 mm
L	442 mm
R	442 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
