Quality Large Industrial Gearboxes

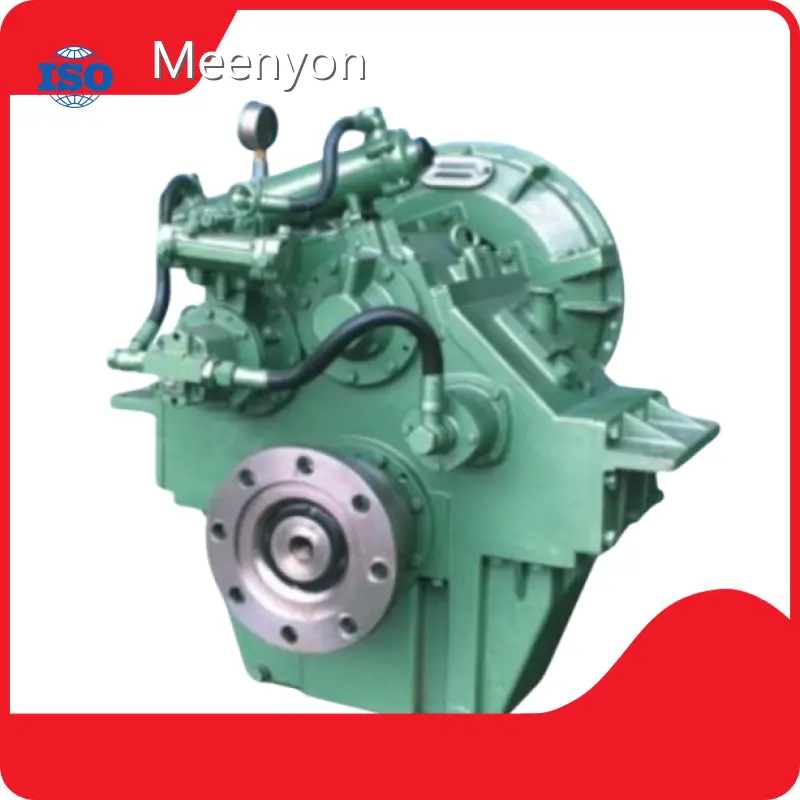

Product details of the large industrial gearboxes

Product Introduction

The raw materials of Meenyon large industrial gearboxes are sourced from the reputed vendors of the market. Its quality is examined under the supervision of our skilled quality experts. This product has brilliant market prospects and opportunities for development.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model T300
01	Engine speed: 750-2300 rpm; max 750 hp at 2300 rpm
02	Ratio :1	4.73	4.95	5.51	6.03	6.65	7.04	7.54	8.02	8.47
03	Rate (hp/rpm)	0.326	0.326	0.326	0.326	0.326	0.326	0.296	0.296	0.268
04	Bell housing: #0, #1				Flywheel: 18”, 16”, 14”
05	Overall L×W×H: 772×980×1106 mm				Dry weight: 1120 kg
06	Centre distance: 355 mm
07	Recommend engine: KTA19-M600; TBD234V12 …
08	Rated propeller thrust: 70 Kn

Dimension

Model T300
C	355 mm
S	455 mm
F	665 mm
L	460 mm
R	460 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
