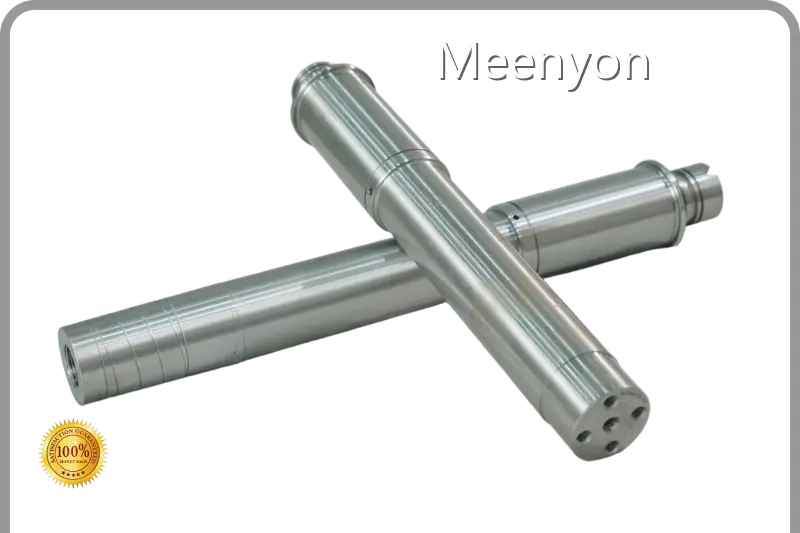

Meenyon Marine Transmission System Marine Transmission System Manufacturer 1

Meenyon Marine Transmission System Marine Transmission System Manufacturer 2

Meenyon Marine Transmission System Marine Transmission System Manufacturer

Inquiry

more products

Marine Gearbox

Hydraulic Marine Clutch

Aftermarket of Marine Gearbox

Marine Unit solution

Send your inquiry

Product details of the marine transmission system

Product Information

The whole production process of Meenyon marine transmission system is completed by using sophisticated and modern machines in adherence to the industry set standards. The product has internationally certified quality and long service life. The product has covered most of the provinces and cities in the country and has been sold to many overseas markets.

Specification

Item	Description	Parameters
01	Tooth profile accuracy	Grade 6 or higher ISO1328 or AGMA standard
02	Tooth direction accuracy	≦0.01mm
03	Pitch accuracy	±0.005mm
04	Surface roughness	Ra≤0.8μm
05	Module	2-14 mm
06	Number of Teeth	as per gearbox ratio and design
07	Pressure Angle	20°

Features

Material

The input shaft is typically made of high-strength alloy steels, such as:

- 20CrMnTi: A carburizing steel with high strength and wear resistance.

- 42CrMo: A quenched and tempered steel with excellent comprehensive mechanical properties.

- 40Cr: A quenched and tempered steel with balanced strength and toughness.

Heat treatment

- Carburizing and Quenching: Suitable for 20CrMnTi, where the surface is carburized and then quenched to achieve high surface hardness while maintaining a tough core.

- Quenching and Tempering: Suitable for 42CrMo and 40Cr, where the material is quenched and then tempered at high temperatures to achieve good overall mechanical properties.

- Surface Hardening: Achieved through induction hardening or flame hardening to improve surface hardness and wear resistance.

Processing

- Rough Machining: Forging the blank followed by rough turning, leaving machining allowances.

- Semi-Finishing: Semi-finish turning of the outer diameter and end faces to ensure dimensional and geometric tolerances.

- Heat Treatment: Carburizing and quenching or quenching and tempering, depending on the material.

- Finishing: Precision turning of the outer diameter and end faces, and grinding of critical areas to ensure dimensional accuracy and surface roughness.

- Surface Treatment: Such as chrome plating or nitriding to further improve wear resistance and corrosion resistance.

- Inspection: Including dimensional checks, hardness testing, and non-destructive testing to ensure quality compliance.

FAQ

What material is usually used for marine gearbox driving gear?

Commonly used materials include high-strength alloy steels such as 20CrMnTi, 18Cr2Ni4WA and 42CrMo. These materials have high strength, good toughness and wear resistance, and are suitable to withstand high loads and impacts.

What are the heat treatment processes of the driving gear?

The main heat treatment processes include: - Carburizing hardening: improve the surface hardness and wear resistance, the surface hardness can reach HRC58-62 with core hardness HRC30-40. - Tempering: eliminate internal stress and improve toughness. - Nitriding treatment: further improve the surface hardness and wear resistance, suitable for high-speed, heavy duty conditions.

What steps does the machining process of the driving gear include?

The processing technology mainly includes: - Forging: Ensure material density and fiber flow. - Roughing: preliminary forming, leaving a margin for finishing. - Finishing: Using high precision CNC machine tools for tooth shape machining. - Grinding teeth: improve tooth shape accuracy and surface quality. - Inspection: Use coordinate measuring machine and gear inspection center to ensure accuracy.

What is the accuracy requirement of the driving gear?

Accuracy requirements include: -Tooth profile accuracy: According to ISO1328 or AGMA standard, usually DIN grade 6 or higher. -Alignment accuracy: The error is controlled within 0.01mm. -Pitch accuracy: The error is controlled within ±0.005mm. -Surface roughness: Ra≤0.8μm

What are the main dimensions of the driving gear?

The main size parameters include: -Module: Usually 2-14mm. -Number of Teeth: Designed according to gearbox ratio. -Pressure Angle: Usually 20°. -Tooth Width (Face Width): common 50-150mm. -Outer Diameter: calculated according to the modulus and number of teeth. Bore Diameter: Fit with shaft, usually 50-200mm.

What are the geometric tolerance requirements for the drive gear?

Geometric tolerances include: -Concentricity: Control within 0.01mm. -Parallelism: Control within 0.02mm. -verticality: Control within 0.01mm.

How to check the accuracy and quality of the driving gear?

Detection methods include: -Coordinate measurement machine: Detect geometric dimensions and form and position tolerances. -Gear detection center: detection of tooth shape, tooth direction and tooth pitch accuracy. -Hardness test: Test surface and core hardness. -Surface roughness detection: Ensure that the tooth surface roughness meets the requirements.

What is the quality control standard for driving gear?

Quality control follows international standards (such as ISO, AGMA) or industry specifications to ensure that the dimensional accuracy, hardness, surface quality and mechanical properties of the gear meet the design requirements.

What are the application scenarios of Marine gearbox driving gear?

The driving gear is widely used in Marine propulsion systems, lifting equipment, construction machinery and other occasions requiring high load and high reliability.

How to maintain the drive gear to extend its service life?

Maintenance measures include: -Check gear meshing and surface wear regularly. -Keep the lubrication system working properly and use suitable lubricating oil. -Avoid overload operation and ensure that the gear works within the rated load.

What is the design life of the driving gear?

The design life is usually 10-20 years, depending on working conditions, load and maintenance.

How to choose the right driving gear supplier?

The following factors should be considered when selecting a supplier: -Technical competence and experience of the supplier. - Quality control system and certification (e.g. ISO/IATF16949, ISO9001). - After-sales service and technical support capabilities.
