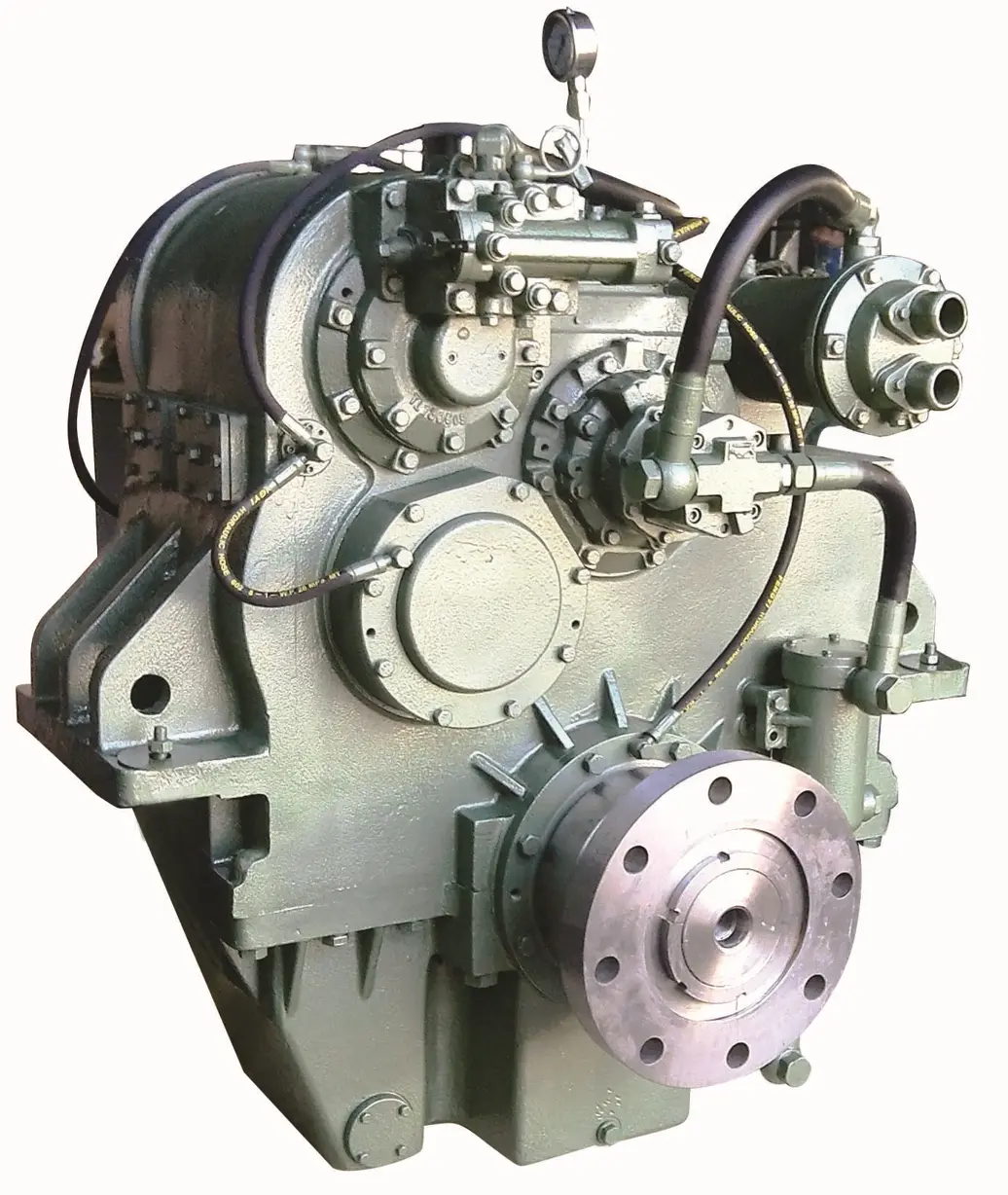

Product details of the marine gearbox supplier
Quick Overview
Meenyon marine gearbox supplier is superior in raw materials: inferior raw materials are totally rejected into the factory. And the high quality raw materials are well accepted though they will increase the cost of production. The implementation of the quality control system ensures that the product is defect free. Meenyon has selected a large number of professional technical talents and design talents.
Product Information
The details of marine gearbox supplier are shown for you at below.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model T800-1 |
|
|
|
|
|
|
|
|
|
||||||||
|
01 |
Engine speed: 600-2100 rpm; max 1759 hp at 2100 rpm |
|
|
|
|
|
|
|
|
|
||||||||||
|
02 |
Reduction Ratio :1 |
6.91 | 7.28 | 7.69 | 8.13 | 8.60 | 9.12 | 9.68 | 10.30 | 10.98 | 11.76 | 12.43 | 13.17 | 14.85 | 15.82 | 16.58 | 17.91 | 20.12 | 22.11 | |
|
13.9703 |
Rate (hp/rpm) |
0.837 | 0.837 | 0.837 | 0.837 | 0.837 | 0.837 | 0.837 | 0.816 | 0.771 | 0.736 | 0.697 | 0.658 | 0.621 | 0.583 | 0.547 | 0.512 | 0.507 | 0.373 | |
|
04 |
Bell housing: #00,#0 |
Flywheel: 16”,18”,21” |
|
|
|
|
|
|
|
|
|
|||||||||
|
05 |
Overall L×W×H: 1152×1360×1557 mm |
Dry weight: 3300 kg |
|
|
|
|
|
|
|
|
|
|||||||||
|
06 |
Centre distance: 582 mm |
|
|
|
|
|
|
|
|
|
||||||||||
|
07 |
Recommend engine: KTA38-M1, 6190CZ, Z8170C… |
|
|
|
|
|
|
|
|
|
||||||||||
|
08 |
Rated propeller thrust: 220 KN |
|
|
|
|
|
|
|
|
|
||||||||||
Dimension
|
Model T800-1 |
|
|
C |
582 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
