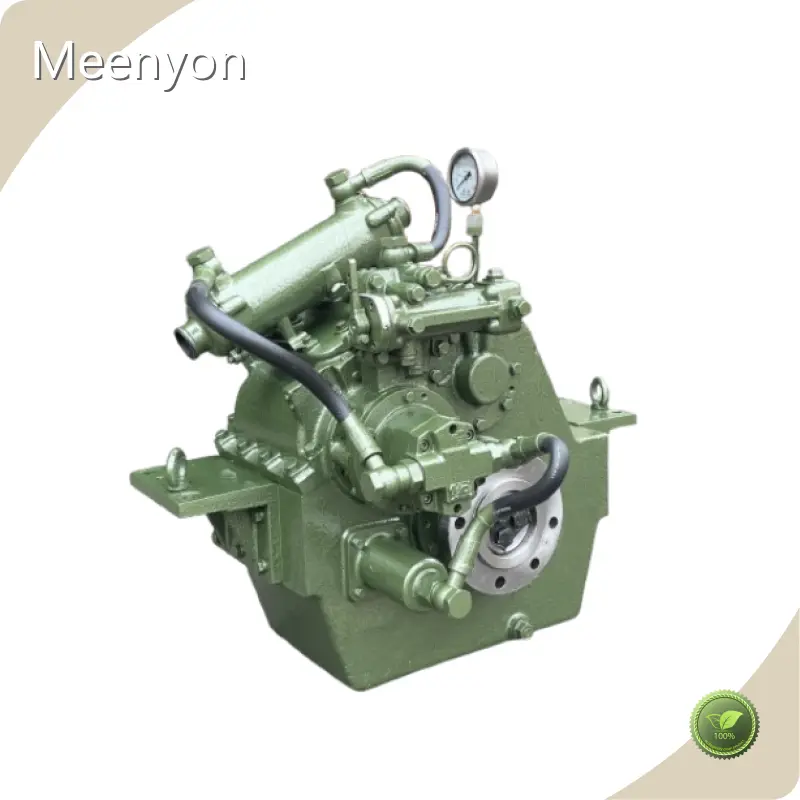

Product details of the marine gearbox supplier

Quick Detail

Meenyon takes quality of materiel seriously. marine gearbox supplier is located in the high-end market. Meenyon's marine gearbox supplier can be applied to different fields. From selecting raw materials to the marine gearbox supplier production, Meenyon strictly controls the standard process.

Product Description

Compared with other marine gearbox supplier, the marine gearbox supplier produced by Meenyon has the following advantages and features.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 7° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model A1400 7°
01	Engine speed: 1600-2100 rpm; max 2513 hp at 2100 rpm
02	Reduction Ratio :1		2.93
03	Rate (hp/rpm)		1.180
04	Bell housing: SAE #0, #1, Special		Flywheel: 14”, 16”, 18” Special
05	Overall L×W×H: 826×1300×1250 mm		Dry weight: 1600 kg
06	Centre distance: 340 mm; 7° down angle on output shaft
07	Recommend engine:
08	Rated propeller thrust: 110 kN

Dimension

Model A1400 7°
C	340 mm
S
F
L
R
A	7°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Introduction

Meenyon has engaged in the production of marine gearbox supplier for years. Our technology leadership position in the industry has been established and recognized. marine gearbox supplier contributes a lot for Meenyon's reputation while supporting the its continued development. Meenyon is committed to providing the most advanced technology and marine gearbox supplier products for modern life. Call!
If you want to know more details of our products, please contact us. We are looking forward to cooperating with you!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
