Meenyon Marine Gearbox Manufacturers Marine Gearbox Manufacturershighly Rated

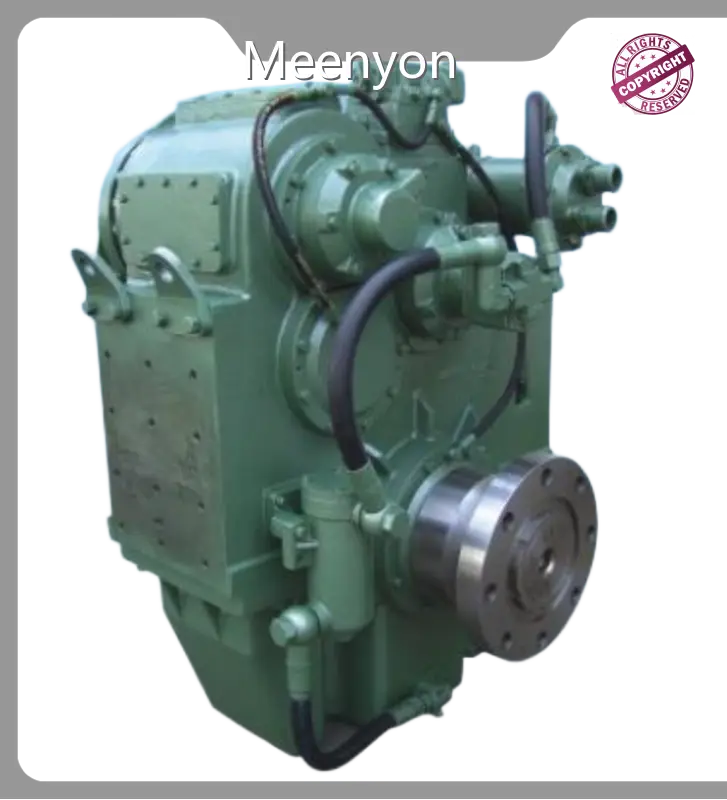

Product details of the marine gearbox manufacturers
Product Overview
The materials of Meenyon marine gearbox manufacturers 100% meet the regulatory requirements. This product meets customers' expectations for functionality, reliability and durability. This product is an excellent choice for creating economic efficiency.
Product Introduction
Meenyon's marine gearbox manufacturers has superior quality. The specific details are presented in the following section.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model T400A-1 |
|
|||||||
|
01 |
Engine speed: 1000-2100 rpm; max 932 hp at 2100 rpm |
|
|||||||||
|
02 |
Reduction Ratio :1 |
8.15 | 8.69 | 9.27 | 9.94 | 10.60 | 11.37 | 12.00 | 12.50 | 13.96 | |
|
03 |
Rate (hp/rpm) |
0.444 | 0.444 | 0.444 | 0.424 | 0.389 | 0.367 | 0.351 | 0.351 | 0.273 | |
|
04 |
Bell housing: #0, #1 |
Flywheel: 14”, 16”,18” |
|
||||||||
|
05 |
Overall L×W×H: 869×920×1327 mm |
Dry weight: 1500 kg |
|
||||||||
|
06 |
Centre distance: 465 mm |
|
|||||||||
|
07 |
Recommend engine: KT38-M800, TBD604BL6, CAT3412TA… |
|
|||||||||
|
08 |
Rated propeller thrust: 120 KN |
|
|||||||||
Dimension
|
Model T400A-2 |
|
|
C |
465 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
