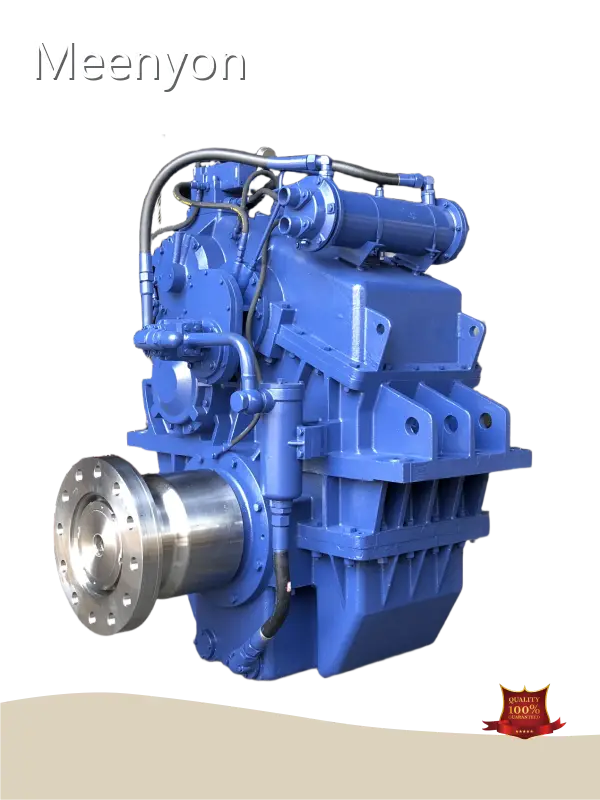

Meenyon Marine Gearbox for Sale Top Brand

Product details of the marine gearbox for sale

Quick Overview

The marine gearbox for sale designed by Meenyon professional designers are very competitive in this industry. Our strict quality management system maintains the excellent performance and quality of our products. Our marine gearbox for sale meets the needs of multiple industries and fields. The product meets the varied expectations of our valuable clients and has a good future with a very variety of applications.

Product Introduction

To better learn about marine gearbox for sale, Meenyon will provide detailed pictures and detailed information in the following section for your reference.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description			Model D1400
01	Engine speed: 600-1900 rpm; max 2624 hp at 1900 rpm
02	Reduction Ratio :1	3.50	3.83		4.04	4.27	4.32	4.52	4.80	5.05	5.50	5.86
13.9703	Rate (hp/rpm)	1.381	1.381		1.381	1.381	1.381	1.381	1.381	1.381	1.378	1.271
04	Bell housing: NO						Flywheel: main engine
05	Overall L×W×H: 1260×1380×1360 mm						Dry weight: 2800 kg
06	Centre distance: 485 mm
07	Recommend engine:
08	Rated propeller thrust: 175 KN

Dimension

Model D1400
C	485 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
