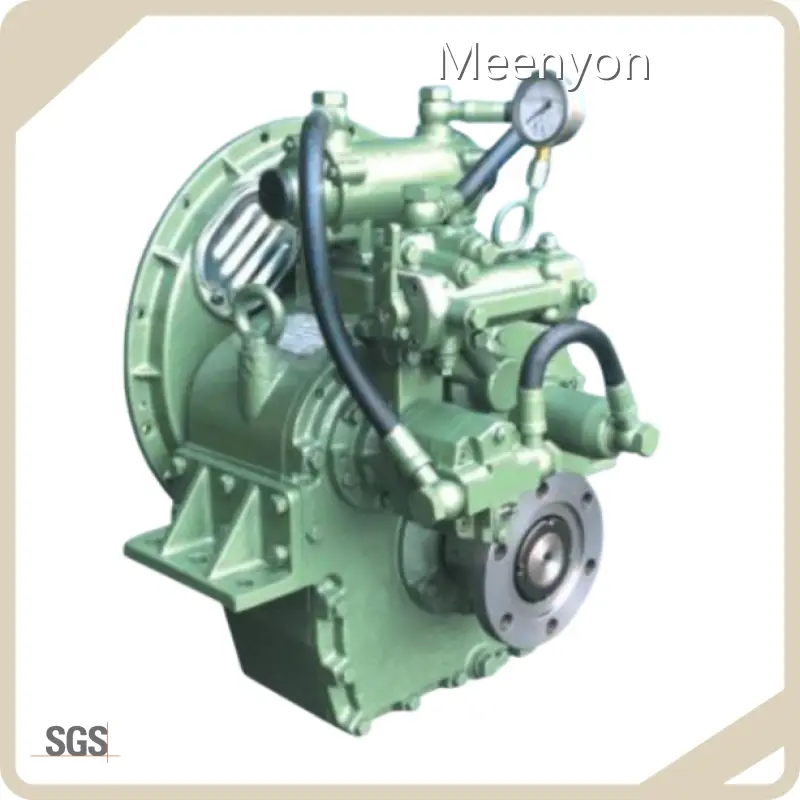

Meenyon Marine Gear Box Factory Price

Product details of the marine gear box

Product Description

The design of Meenyon marine gear box is grounded in thorough research of the existing and target customers. The product is tested by a competent team and is guaranteed. Meenyon expands current production facilities to boost shipping volume and to shorten lead-time.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description		Model T300-1
01	Engine speed: 1000-2300 rpm; max 605 hp at 2300 rpm
02	Reduction Ratio :1	8.94		9.45
03	Rate (hp/rpm)	0.263		0.263
04	Bell housing: #0, #1			Flywheel: 14”, 16”,18”
05	Overall L×W×H: 772×980×1106 mm			Dry weight: 1120 kg
06	Centre distance: 355 mm
07	Recommend engine: KTA19-M600; TBD234V12T …
08	Rated propeller thrust: 70 KN

Dimension

Model T300-1
C	355 mm
S	455 mm
F	665 mm
L	460 mm
R	460 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Feature

• Meenyon's products are exported to many countries in Europe, Oceania, Africa, and America.
• Meenyon owns a superior geographical location. There are traffic convenience, elegant ecological environment, and abundant natural resources.
• We always put our customers first and treat each customer sincerely. Besides, we strive to meet the requirements of customers, and solve their problems duly.
• Our company has a professional R&D team and a high-quality production team, and they are the strong backing for our development. Our team members are experienced and innovative, for they are engaged in production for many years.
Look forward to inquiries from customers in various industries

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
