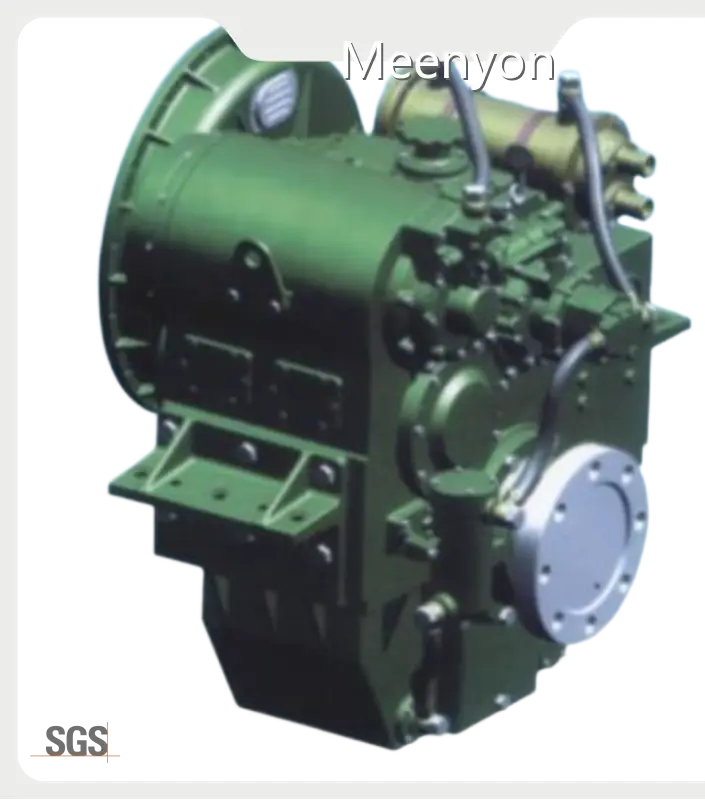

Product details of the light duty gearbox

Product Overview

Meenyon light duty gearbox has a design that satisfies design standard. Under the supervision of the quality inspector, the quality of the product is checked at each different level to ensure quality. Meenyon' aim: High quality materials, sophisticated equipment, exquisite workmanship.

Product Information

Compared with similar products, Meenyon's light duty gearbox has the following advantages.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description			Model T600A
01	Engine speed: 1000-2100 rpm; max 1267 hp at 2100 rpm
02	Reduction Ratio :1	6.97	7.51		8.04	8.66	9.35
03	Rate (hp/rpm)	0.523	0.487		0.453	0.390
04	Bell housing: #00,#0, #1					Flywheel: 14”, 16”,18”,21”
05	Overall L×W×H: 821×1214×1271 mm					Dry weight: 1650 kg
06	Centre distance: 415 mm
07	Recommend engine: KTA38-M940, CAT3508TA TBD234V16…
08	Rated propeller thrust: 90 KN

Dimension

Model T600A
C	415 mm
S	365 mm
F	821 mm
L	442 mm
R	442 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
