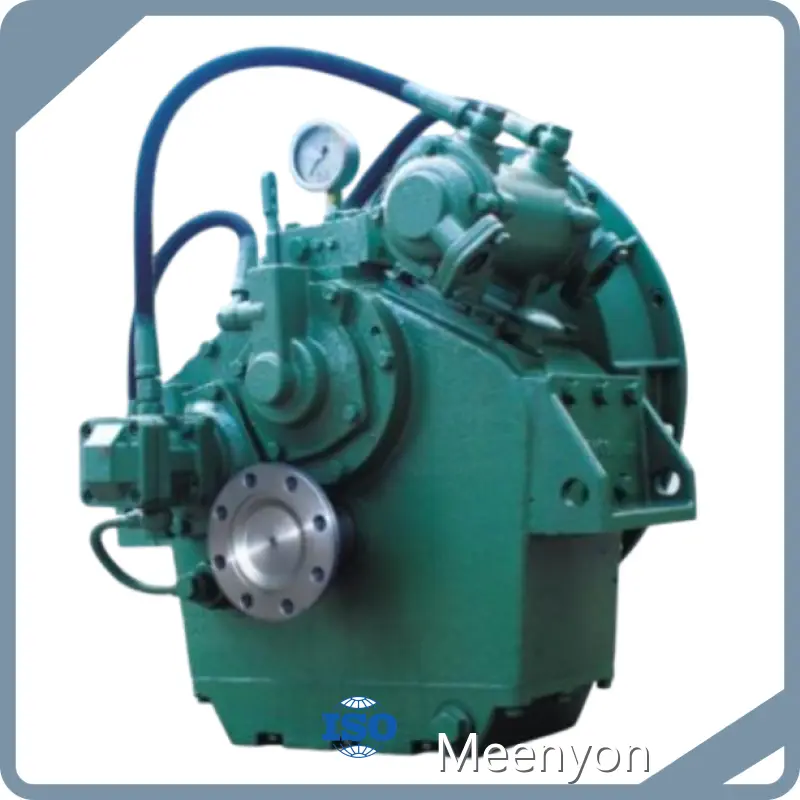

Product details of the industrial gearbox

Quick Overview

Meenyon industrial gearbox combines the advantages of a conventional process and modern production. The product has long-term service, stable performance, and great durability, etc. The product enjoys a good reputation among customers and will develop more broad market in the future.

Product Description

Compared with similar products on the market, the industrial gearbox of Meenyon has the following advantages.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model Q138
01	Engine speed: 1000-2600 rpm; max 385 hp at 2600 rpm
02	Reduction Ratio :1	1.03	1.25	1.50	2.03	2.48	2.95
03	Rate (hp/rpm)	0.148	0.148	0.148	0.148	0.148	0.131
04	Bell housing: SAE #1, #2, #3				Flywheel: 14”, 11.5”
05	Overall L×W×H: 504×619×616 mm				Dry weight: 240 kg
06	Centre distance: 165 mm
07	Recommend engine: NT-855-M240, CAT3406 …
08	Rated propeller thrust: 25 KN

Dimension

Model Q138
C	165 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
