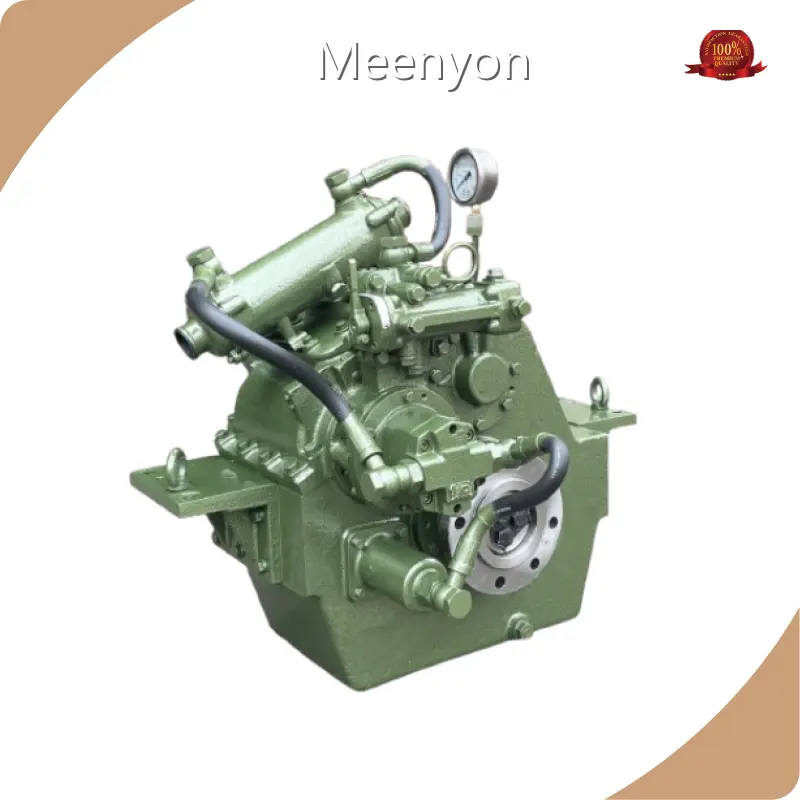

Meenyon Heavy Duty Gearbox Supplier

Product details of the heavy duty gearbox

Product Overview

Our heavy duty gearbox can transform thousands of different styles to complete your design and creativity. This product enjoys long service time for its sophisticated quality. Various in function and wide in application, the heavy duty gearbox can be used in many industries and fields. Meenyon owns advanced equipment, rich technical force and strong product R&D ability for heavy duty gearbox.

Product Information

Meenyon adheres to the principle of 'details determine success or failure' and pays great attention to the details of heavy duty gearbox.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 7° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model A138 7°
01	Engine speed: 1000-2600 rpm; max 385 hp at 2600 rpm
02	Reduction Ratio :1	1.10	1.28	1.50	2.03	2.52	2.95
03	Rate (hp/rpm)	0.148	0.148	0.148	0.148	0.148	0.114
04	Bell housing: SAE #1, #2,				Flywheel: 14”, 11.5”
05	Overall L×W×H: 530×660×616 mm				Dry weight: 200 kg
06	Centre distance: 185 mm; 7° down angle on output shaft
07	Recommend engine: NT-855-M240, MWM D234 V8 …
08	Rated propeller thrust: 25 KN

Dimension

Model A138 7°
C	185 mm
S
F
L
R
A	7°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Introduction

Meenyon has been specialized in manufacture of heavy duty gearbox since its inception. Meenyon has strong technical force and excellent equipment technology. The culture of stimulating the vitality of the talent team can ensure the efficiency of Meenyon. Get quote!
We sincerely welcome customers with needs to contact us and cooperate with us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
