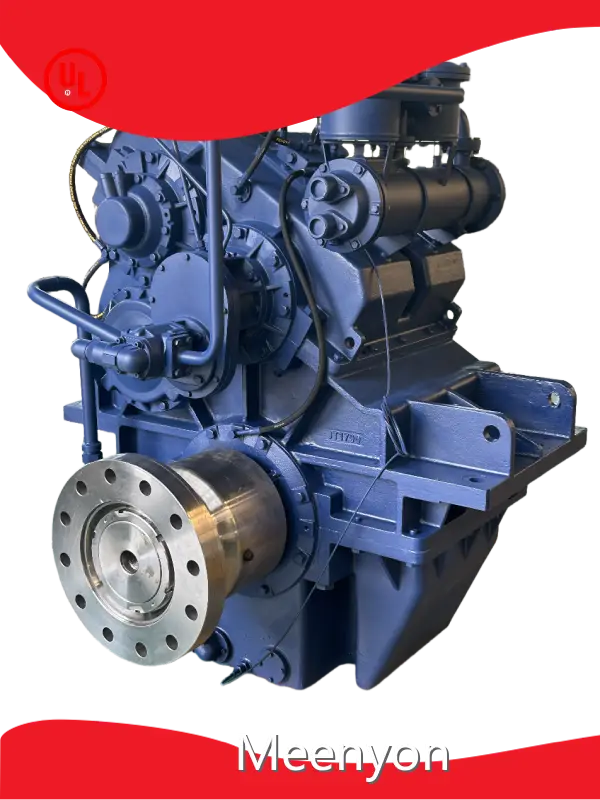

Meenyon Heavy Duty Gear Reduction Box Dealer
Product details of the heavy duty gear reduction box
Quick Overview
heavy duty gear reduction box is built using standard materials procured from trusted vendors of the market. This well recognized product is known for excellent quality and reliable performance. The customer's needs, expectations and satisfaction continue to be achieved with this product.
Product Introduction
We demand ourselves in the production of heavy duty gear reduction box with stricter standards. Based on this, we ensure that our products have advantages over the general products in the following aspects.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model D2000 |
|||||||||
|
01 |
Engine speed: 600-1500 rpm; max 2975 hp at 1500 rpm |
|||||||||||
|
02 |
Reduction Ratio :1 |
3.00 | 3.58 | 3.96 | 4.45 | 4.95 | 5.26 | 5.43 | 5.75 | 6.25 | ||
|
03 |
Rate (hp/rpm) |
1.983 | 1.983 | 1.983 | 1.983 | 1.983 | 1.983 | 1.796 | 1.648 | 1.595 | ||
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|||||||||
|
05 |
Overall L×W×H: 1600×1620×1645 mm |
|
Dry weight: 4200 kg |
|||||||||
|
06 |
Centre distance: 560 mm |
|||||||||||
|
07 |
Recommend engine: |
|||||||||||
|
08 |
Rated propeller thrust: 220 KN |
|||||||||||
Dimension
|
Model D2000 |
|
|
C |
560 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
