MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

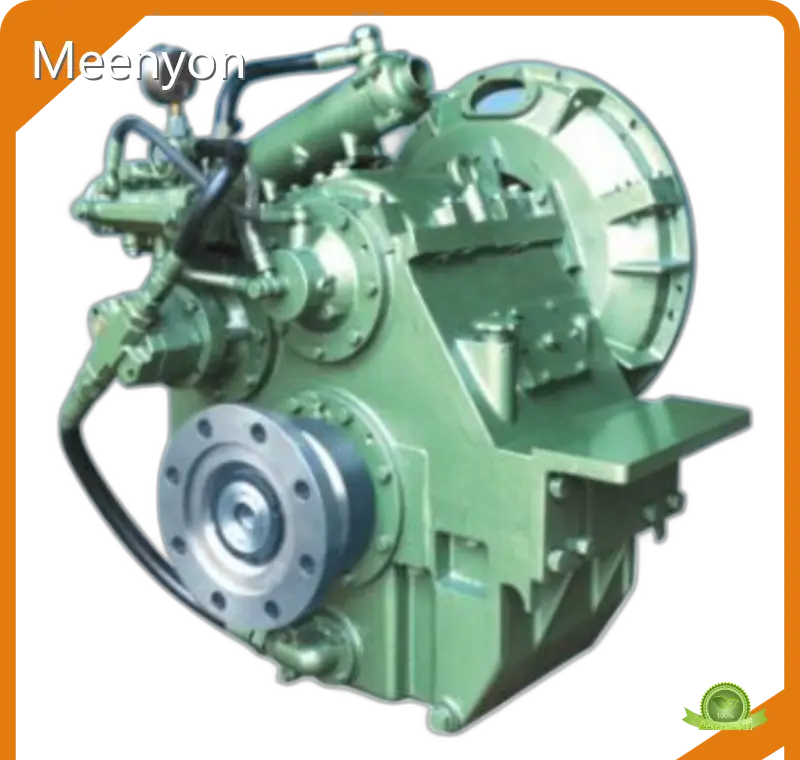

Medium and Heavy Duty Gearbox Marina Gearbox Highly Rated

Inquiry

Company Advantages

· Meenyon marina gearbox is carefully produced complying with the industry standards.

· The product is examined as per industry standards to make sure it is free from flaws.

· Meenyon managed to stabilize its annual production, thanks to measures such as marina gearbox.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description		Model M300
01	Engine speed: 750-2500 rpm; max 862.0 hp at 2500 rpm
02	Ratio :1	1.50	1.87	2.04	2.23	2.54	3.00	3.53	4.10	4.47	4.61	4.94	5.44
03	Rate (hp/rpm)	0.345	0.345	0.345	0.345	0.345	0.345	0.345	0.268	0.268	0.247	0.197	0.174
04	Bell housing: #0, #1						Flywheel: SAE 18”,16”,14”
05	Overall L×W×H:680×930×880 mm						Dry weight: 680kg
06	Centre distance: 264mm ;
07	Recommend engine:KTA19-M600, TBD234V12…
08	Rated propeller thrust: 50kN

Dimension

Model M300
C	264mm
S	270mm
F	648mm
L	435mm
R	435mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Features

· As an internationally famous manufacturer for marina gearbox, Meenyon is reliable for its high quality.

· Having a complete set of quality management platform, Meenyon may fulfill the requirements of different clients. Strong methods and sound quality management system guarantee the quality of marina gearbox. Meenyon only provides the finest-quality marina gearbox

· We follow the principle of 'providing reliable service and persevering' and formulate the following main business policies: developing talent advantage and layout investment to enhance the development momentum; expanding the market through marketing to ensure complete production capacity. Call!

Product Comparison

Compared with the same kind of products in the industry, marina gearbox has the following highlights due to the better technical capability.

Enterprise Advantages

Meenyon has an elite team with a great education background and professions. This enables us to develop new products on time, which are competitive in the market, according to market demand.

Our company has a first-class after-sales service team of professional technology and a set of standardized service management systems to supply the best quality service to the customers.

We have broad development prospects in the industry. Under the guidance of the business philosophy of 'pursuing excellence, embracing nature, and benefiting mankind', we will actively implement our corporate strategy, fulfill our social responsibilities, and strive to provide high-quality products for our customers and society.

Meenyon was established in Our company has won unanimous praise from customers, because of years of industry experience, professional production technology and perfect service system.

Meenyon has established sales outlets in major cities in China. The products are also exported to Europe, America, Southeast Asia, and other regions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
