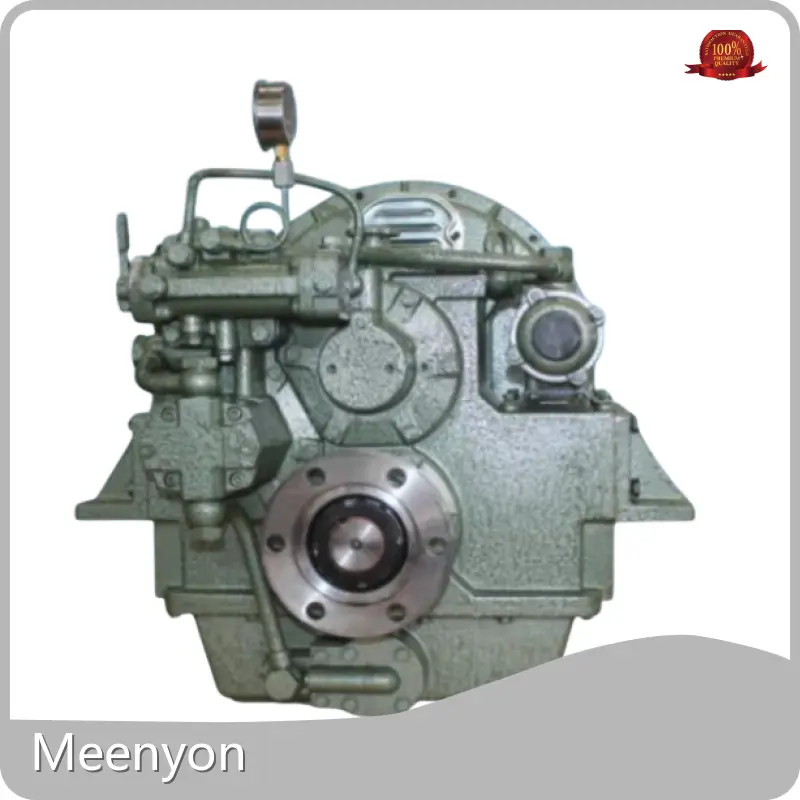

Product details of the marine transmissions
Product Description
Advanced technology and equipment, professional management help Meenyon win customers’trust on ourmarine transmissions. It has been tested by the harsh international first-class inspection standards. Meenyon provides quality assurance, so marine transmissions sells well all over the world.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● Mechanical or electrical remote control
Specification
|
Item |
Description |
|
Model Q300 |
||||||||
|
01 |
|
Engine speed: 1000-2300 rpm; max 771 hp at 2300 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
1.06 |
1.21 |
1.36 |
1.46 |
1.74 |
2.05 |
2.38 |
2.55 |
||
|
03 |
Rate (hp/rpm) |
0.335 |
0.335 |
0.335 |
0.335 |
0.335 |
0.335 |
0.315 |
0.308 |
||
|
04 |
Bell housing: SAE #0, #1 |
Flywheel: 14”, 16”,18” |
|||||||||
|
05 |
Overall L×W×H: 630×521×686 mm |
Dry weight: 370 kg |
|||||||||
|
06 |
|
Centre distance: 203 mm |
|||||||||
|
07 |
|
Recommend engine: KTA19-M600, CAT3412T, TBD234V12 … |
|||||||||
|
08 |
|
Rated propeller thrust: 40 KN |
|||||||||
Dimension
|
Model Q300 |
|
|
C |
203 mm |
|
S |
|
|
F |
|
|
L |
|
|
R |
|
