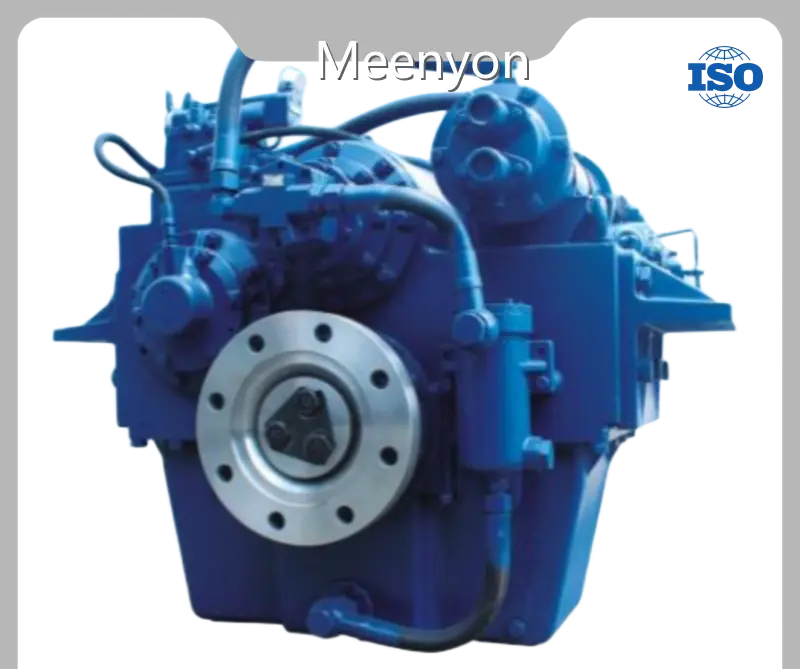

Marine Transmissions by Meenyon

Inquiry

Product details of the marine transmissions

Quick Detail

Meenyon marine transmissions is endowed with exceptional appearance. Its beautiful design comes from our exclusive designers with strong innovation and design capabilities. Its quality is highly valued in our factory. marine transmissions of Meenyon can be widely used in various fields. It will become popularized and more applicable in the industry.

Product Introduction

Compared with similar products, the marine transmissions of Meenyon is more strict in the selection of raw materials. The specific aspects are as follows.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description			Model 1000
01	Engine speed: 600-2100 rpm; max 2069 hp at 2100 rpm
02	Reduction Ratio :1	2.00	2.17		2.50	2.64	3.04	3.48	3.59	4.06
03	Rate (hp/rpm)	0.985	0.985		0.985	0.985	0.985	0.985	0.985	0.872
04	Bell housing: No					Flywheel: main engine flywheel
05	Overall L×W×H: 1082×1120×990 mm					Dry weight: 1500 kg
06	Centre distance: 335 mm
07	Recommend engine: CW6200ZC, 6210ZL…
08	Rated propeller thrust: 110 KN

Dimension

Model 1000
C	335 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
