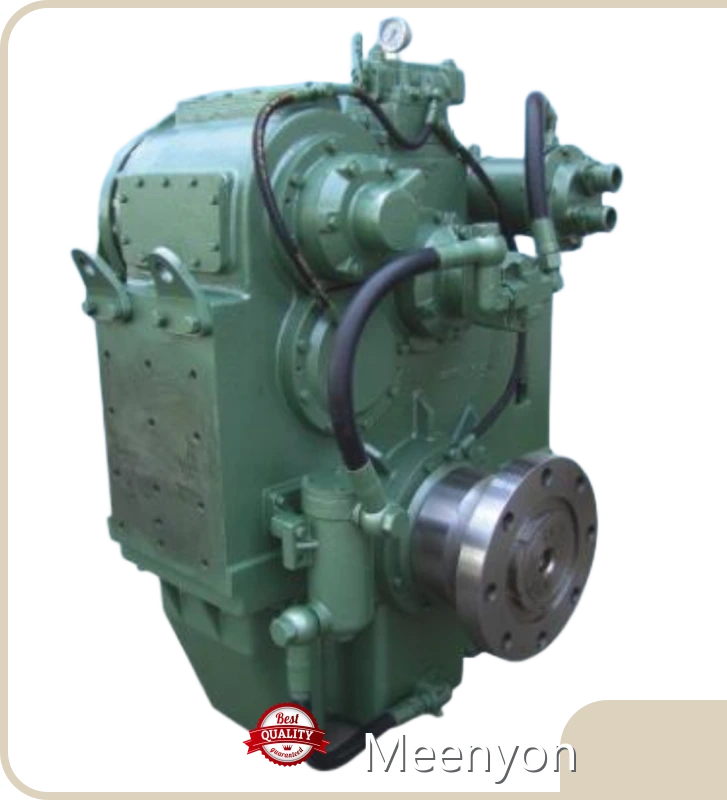

Product details of the marine transmission system
Product Overview
Our marine transmission system are constantly updated to follow the trend. By virtue of its unique treatment process, the safety and effectiveness of marine transmission system are at a cutting-edge of the industry. The product has won unanimous praises from all customers and has a promising market prospect.
Product Introduction
Compared with general products, the marine transmission system we produce have the following advantages.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model T400A-1 |
|
|||||||
|
01 |
Engine speed: 1000-2100 rpm; max 932 hp at 2100 rpm |
|
|||||||||
|
02 |
Reduction Ratio :1 |
8.15 | 8.69 | 9.27 | 9.94 | 10.60 | 11.37 | 12.00 | 12.50 | 13.96 | |
|
03 |
Rate (hp/rpm) |
0.444 | 0.444 | 0.444 | 0.424 | 0.389 | 0.367 | 0.351 | 0.351 | 0.273 | |
|
04 |
Bell housing: #00,#0, #1 |
Flywheel: 14”, 16”,18” |
|
||||||||
|
05 |
Overall L×W×H: 784×992×1130 mm |
Dry weight: 1450 kg |
|
||||||||
|
06 |
Centre distance: 465 mm |
|
|||||||||
|
07 |
Recommend engine: KT38-M800, TBD604BL6, CAT3412TA… |
|
|||||||||
|
08 |
Rated propeller thrust: 120 KN |
|
|||||||||
Dimension
|
Model T400A-1 |
|
|
C |
465 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
