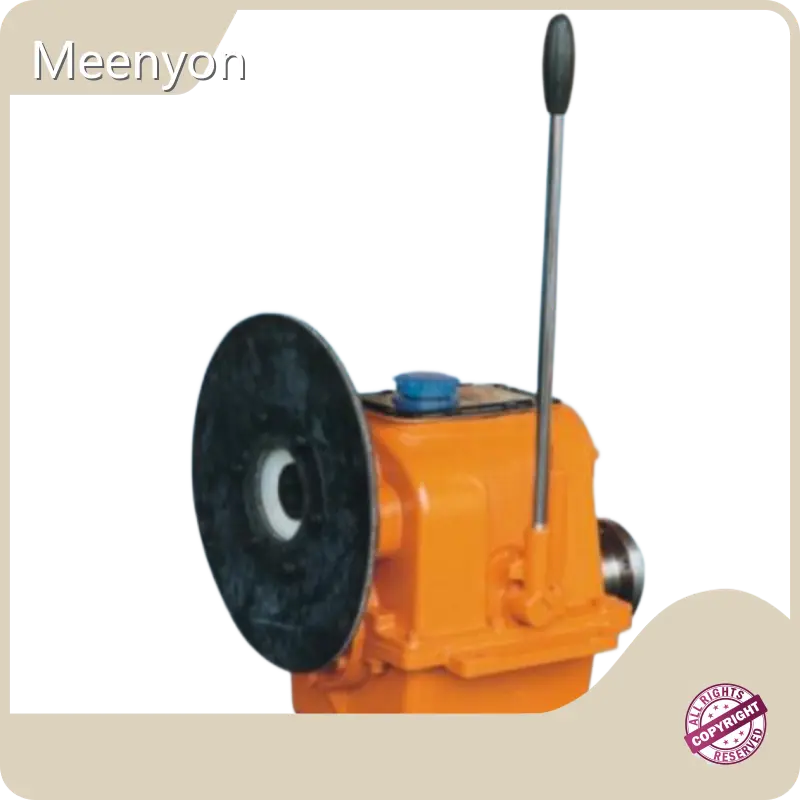

Product details of the marine transmission system

Product Description

Meenyon marine transmission system is manufactured using foreign advance technology. The latest idea of its marine transmission system combines the advanced technology and fashionable trend together. Meenyon has been always providing marine transmission system with the first-rate quality.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical joint clutch

Specification

Item	Description	Model 26
01	Engine speed: 1000-2500 rpm; max 66.7 hp at 2500 rpm
02	Ratio :1	2.50	2.95	3.50	3.83
03	Rate (hp/rpm)	0.027	0.027	0.025	0.024
04	Bell housing: 4105C				Flywheel: 4105C
05	Overall L×W×H: 743.5×365×830 mm				Dry weight: 92kg
06	Centre distance: 135 mm;
07	Recommend engine:TD226B-3C
08	Rated propeller thrust: 5.0 kN

Dimension

Model 26
C	135 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
