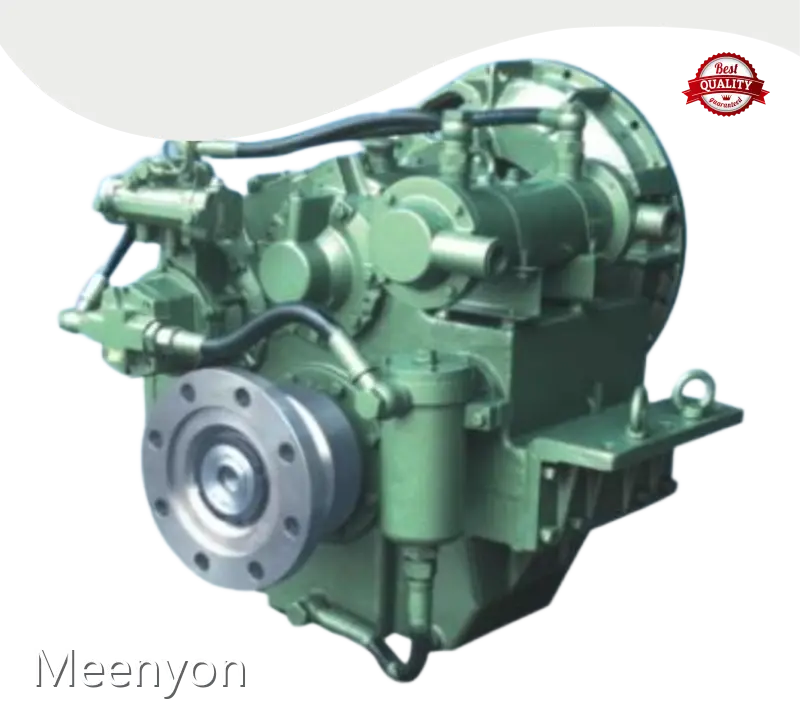

Product details of the marine transmission system

Product Description

Meenyon can provide customization service for marine transmission system. The product is manufactured by workers who have abundant experience in production, ensuring the quality. It has a good application prospect and value.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description			Model 400
01	Engine speed: 1000-1800 rpm; max 799 hp at 1800 rpm
02	Reduction Ratio :1	1.50	1.77		2.04	2.50	2.86	3.00	3.42	4.06	4.61	4.94
03	Rate (hp/rpm)	0.444	0.444		0.444	0.444	0.444	0.444	0.444	0.373	0.254	0.254
04	Bell housing: #0, #1					Flywheel: 14”, 16”,18”
05	Overall L×W×H: 641×1010×890 mm					Dry weight: 820 kg
06	Centre distance: 264 mm
07	Recommend engine: CAT3412TA, TBD604BL6…
08	Rated propeller thrust: 82 KN

Dimension

Model 400
C	264 mm
S	273 mm
F	636 mm
L	365 mm
R	365 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
