Marine Transmission Gearbox Wholesale - Meenyon

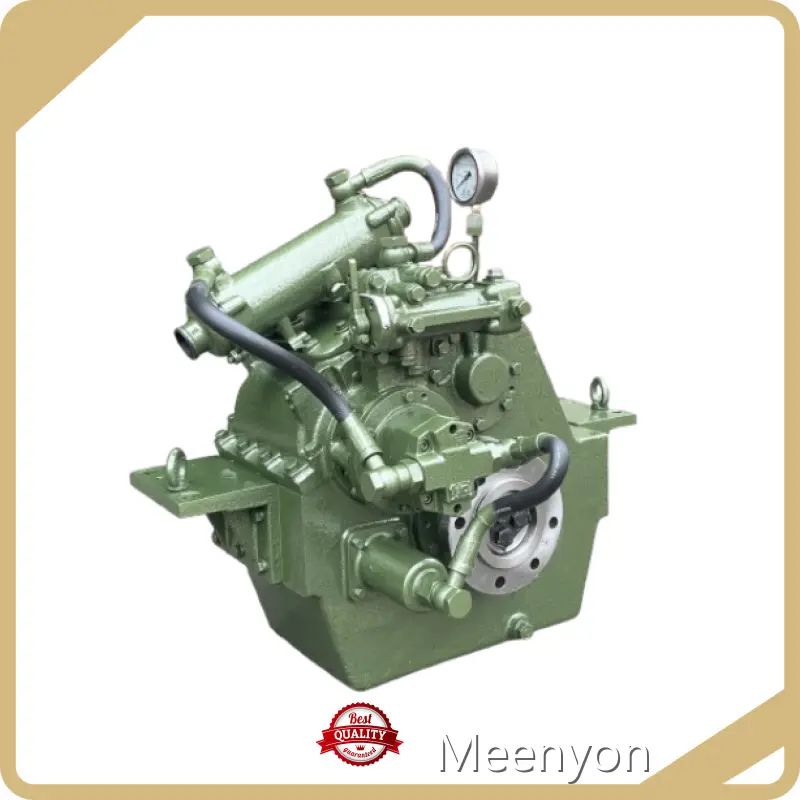

Product details of the marine transmission gearbox

Product Introduction

The production of Meenyon marine transmission gearbox is of high efficiency with the help of advanced production equipment. Since our professional quality control personnel track the quality throughout the production process, the product is guaranteed to have zero defects. Meenyon aims to introduce foreign advance technology in order to promote marine transmission gearbox manufacturing capacity and technical level.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 7° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model A138 7°
01	Engine speed: 1000-2600 rpm; max 385 hp at 2600 rpm
02	Reduction Ratio :1	1.10	1.28	1.50	2.03	2.52	2.95
03	Rate (hp/rpm)	0.148	0.148	0.148	0.148	0.148	0.114
04	Bell housing: SAE #1, #2,				Flywheel: 14”, 11.5”
05	Overall L×W×H: 530×660×616 mm				Dry weight: 200 kg
06	Centre distance: 185 mm; 7° down angle on output shaft
07	Recommend engine: NT-855-M240, MWM D234 V8 …
08	Rated propeller thrust: 25 KN

Dimension

Model A138 7°
C	185 mm
S
F
L
R
A	7°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Feature

• Founded in Meenyon has a history of years. We have accumulated rich industry experience relying on the wisdom and skills of all members.
• Our company insists on the service concept of 'customer first' and can supply customers with stable and high-quality services.
• Meenyon's location enjoys traffic convenience, complete facilities and good comprehensive environment. All these are good for the efficient transportation of Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch.
• Our products are sold well in many countries around the world.
Hello! Welcome to Meenyon! We will serve you with sincere attitude and provide favorable price for you.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
