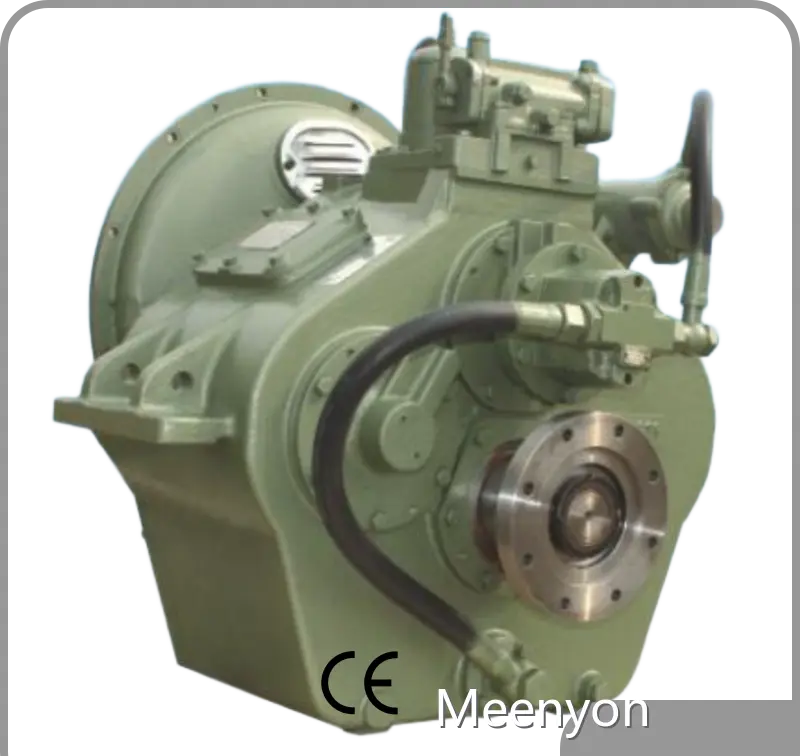

Product details of the marine transmission gearbox

Product Introduction

marine transmission gearbox from Meenyon conveys unique innovative product concept. The product has acquired numerous certifications and thus can meet the requirements of customers. The product can meet the market demand with the obvious economic effectiveness.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model 120B
01	Engine speed: 750-1800 rpm; max 212.0 hp at 1800 rpm
02	Ratio :1	2.03	2.81	3.73
03	Rate (hp/rpm)	0.118	0.118	0.059
04	Bell housing: #1				Flywheel: 14”
05	Overall L×W×H: 605×744×770 mm				Dry weight: 400kg
06	Centre distance: 190 mm;
07	Recommend engine:6135Ca, 4120
08	Rated propeller thrust: 25.0 kN

Dimension

Model 120B
C	190 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantage

• While selling products, our company also provides corresponding after-sales services for consumers to solve their worries.
• With good location advantages, the open and easy traffic serves as the foundation for Meenyon's development.
• Meenyon insists on the combination of the domestic market and foreign market. We are competitive in the market for we have a sales range covering the whole world.
• Meenyon was founded in Based on the years of experience, we have become a famous production enterprise at home and abroad.
Want to know the details and quotation of various Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch? Please contact Meenyon.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
