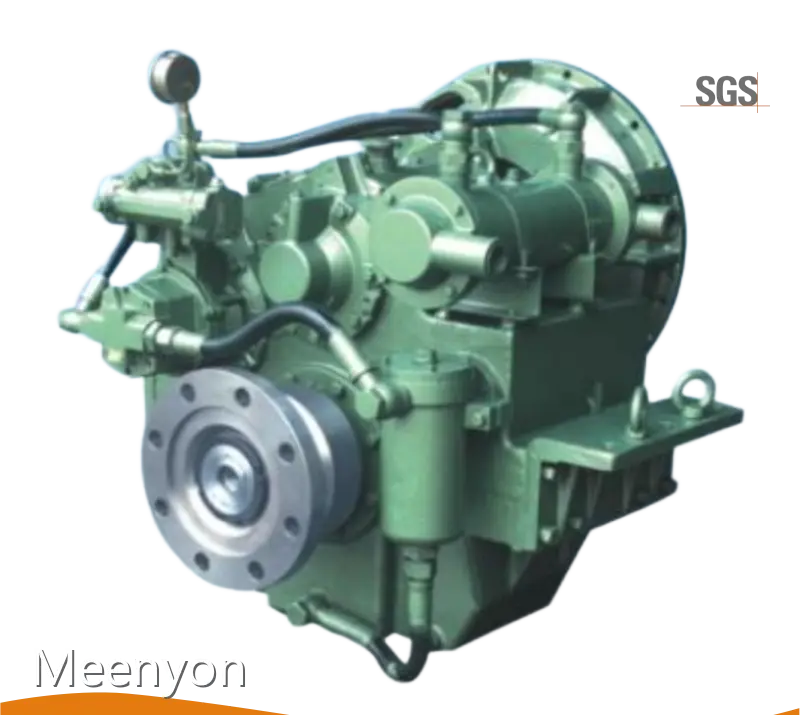

Product details of the marine reduction gearbox with clutch
Quick Overview
The production process of Meenyon marine reduction gearbox with clutch has been standardized by using the advanced technology. marine reduction gearbox with clutch is located in the high-end market. Following the philosophy of 'Customer-Oriented' help Meenyon win the customers.
Product Description
The specific details of marine reduction gearbox with clutch are presented below.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T400A |
|||||||
|
01 |
Engine speed: 1000-2100 rpm; max 932 hp at 2100 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
6.09 | 6.49 | 6.93 | 7.42 | 7.96 | 8.40 | 9.00 | 9.47 | |
|
03 |
Rate (hp/rpm) |
0.444 | 0.444 | 0.444 | 0.414 | 0.385 | 0.355 | 0.326 | 0.326 | |
|
04 |
Bell housing: #00, #0, #1 |
Flywheel: 14”, 16”,18” |
||||||||
|
05 |
Overall L×W×H: 784×992×1130 mm |
Dry weight: 1450 kg |
||||||||
|
06 |
Centre distance: 375 mm |
|||||||||
|
07 |
Recommend engine: KT38-M800, TBD604BL6, CAT3412TA… |
|||||||||
|
08 |
Rated propeller thrust: 82 KN |
|||||||||
Dimension
|
Model T400A |
|
|
C |
375 mm |
|
S |
370 mm |
|
F |
784.3 mm |
|
L |
416 mm |
|
R |
416 mm |
