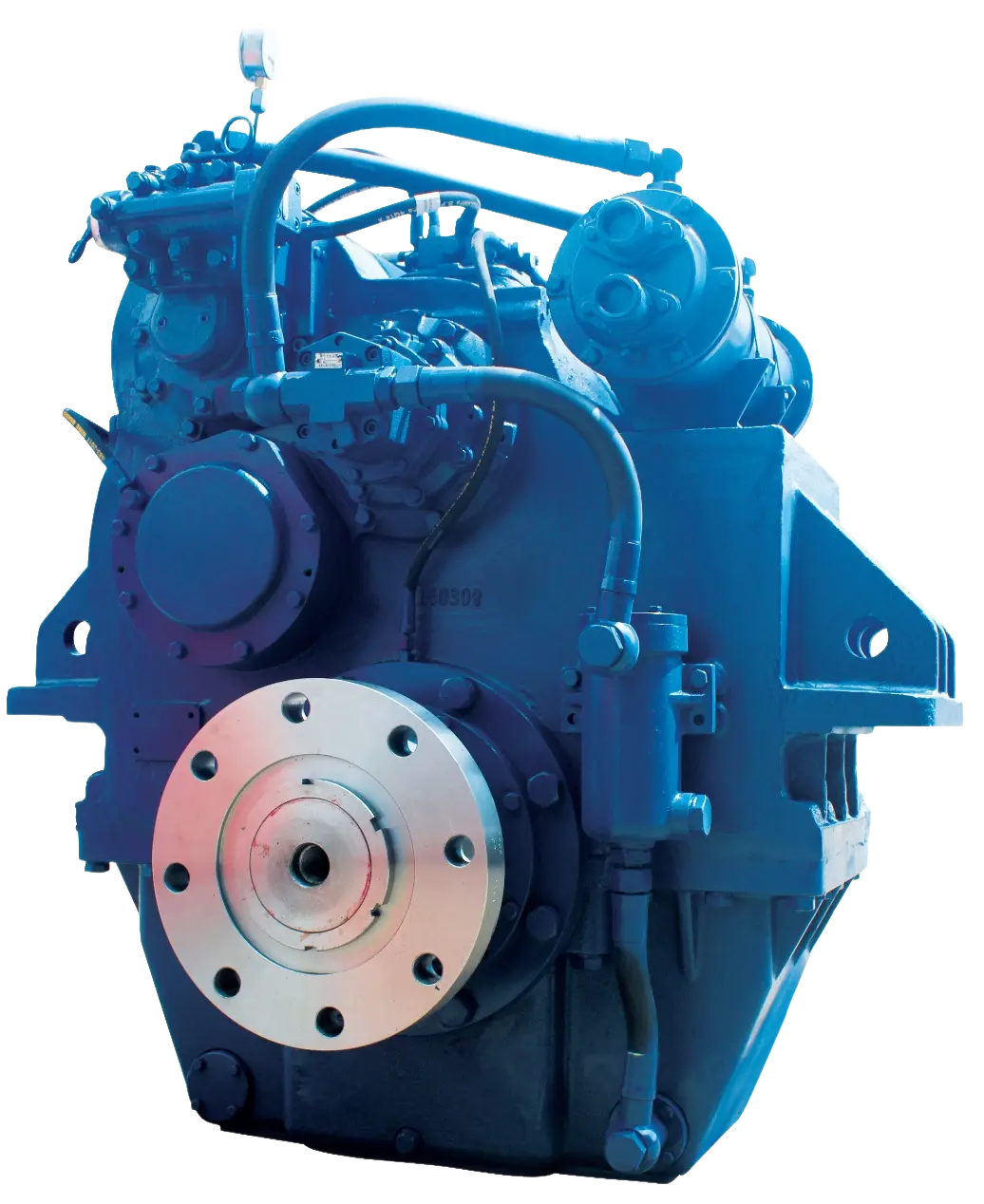

Product details of the marine gearbox
Product Information
marine gearbox can be made by different materials. The product is in the best quality at competitive, affordable prices. Meenyon has absorbed the advantages of advanced marine gearbox at home and abroad.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model T600A-1 |
|
|
|
|
|
||||||||
|
01 |
Engine speed: 1000-2100 rpm; max 1242 hp at 2100 rpm |
|
|
|
|
|
||||||||||
|
02 |
Reduction Ratio :1 |
6.09 | 6.48 | 7.04 | 7.69 | 8.23 | 8.82 | 9.47 | 10.10 | 10.80 | 11.65 | 12.57 | 13.64 | 14.44 | 15.91 | |
|
03 |
Rate (hp/rpm) |
0.591 | 0.591 | 0.591 | 0.591 | 0.591 | 0.552 | 0.536 | 0.503 | 0.503 | 0.473 | 0.444 | 0.365 | 0.345 | 0.274 | |
|
04 |
Bell housing: #00,#0, #1 |
Flywheel: 14”, 16”,18”,21” |
|
|
|
|
|
|||||||||
|
05 |
Overall L×W×H: 878×1224×1346 mm |
Dry weight: 1700 kg |
|
|
|
|
|
|||||||||
|
06 |
Centre distance: 500 mm |
|
|
|
|
|
||||||||||
|
07 |
Recommend engine: KTA38-M940, CAT3508TA TBD234V16… |
|
|
|
|
|
||||||||||
|
08 |
Rated propeller thrust: 140 KN |
|
|
|
|
|
||||||||||
Dimension
|
Model T600A-1 |
|
|
C |
500 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
