MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

Marine Gearbox Supply

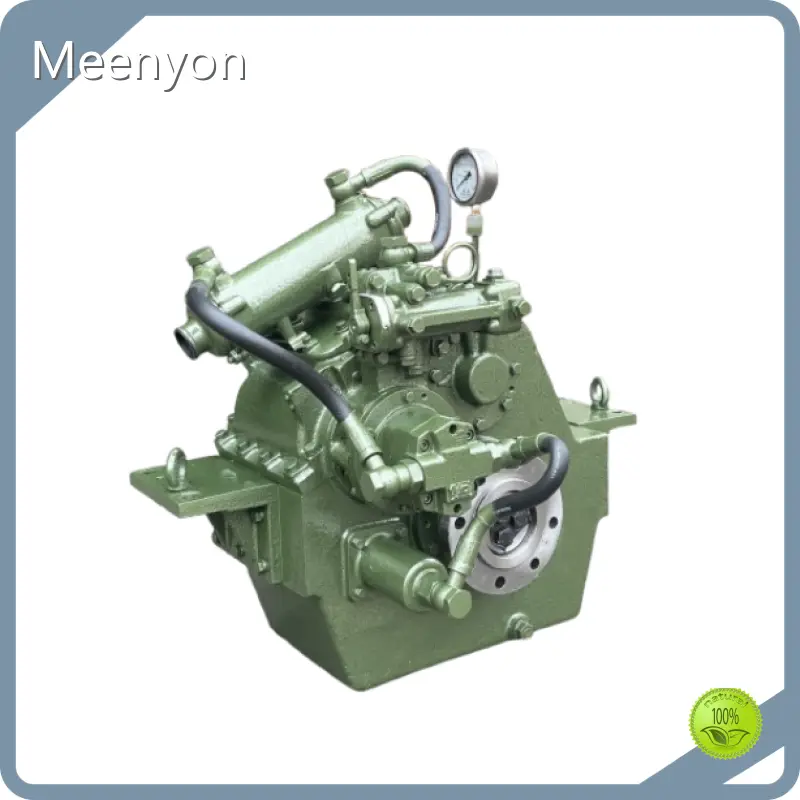

Product details of the marine gearbox

Product Overview

Meenyon marine gearbox is delicately crafted by the experienced production team. The product is inspected to ensure its high quality. The quality inspection plan is formulated by many experts and each quality inspection work is carried out in an orderly and efficient manner. This product has won praises from customers all over the world and has great market application potential.

Product Information

We strive for perfection and pursue excellence in every detail of production. All this promotes the high quality of our products.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 5° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model A1401 5°
01	Engine speed: 1600-2100 rpm; max 2944 hp at 2100 rpm
02	Reduction Ratio :1	1.52	2.03	2.53	2.93
03	Rate (hp/rpm)	1.402	1.402	1.265	1.197
04	Bell housing: SAE #0, #1, Special				Flywheel: 14”, 16”, 18” Special
05	Overall L×W×H: 756×1300×1285 mm				Dry weight: 1400 kg
06	Centre distance: 340 mm; 5° down angle on output shaft
07	Recommend engine
08	Rated propeller thrust: 110 kN

Dimension

Model A1401 5°
C	340 mm
S
F
L
R
A	5°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

Being a dependable manufacturer, Meenyon has been providing marine gearbox. We have been engaged in production and distribution. The factory has close cooperation with third-party quality testing institutions. This allows us to ensure our collections meet the latest legal, chemical, and safety standards. Our goal is to head ahead of the market competitors. Currently, we will invest more in introducing advanced and high-tech manufacturing facilities which can help improve product quality.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
